SDJCR/L :

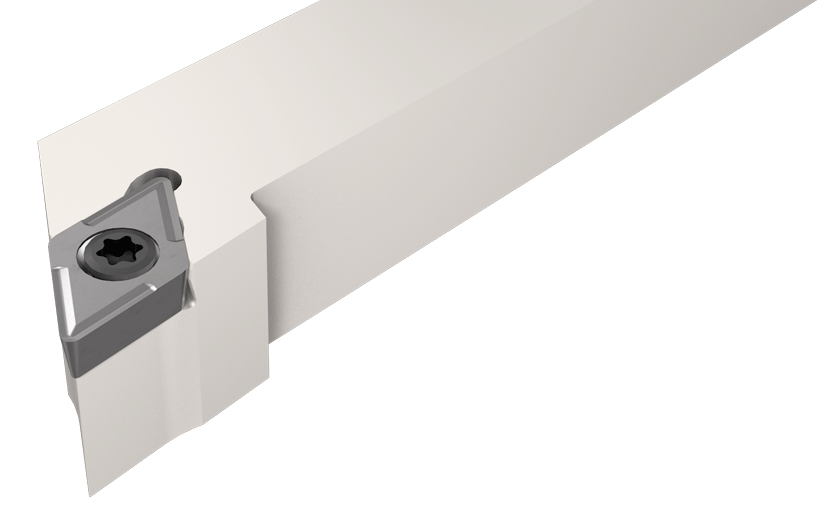

Screw lock toolholders for 55° diamond inserts with 7° clearance angle.
Right-hand shown

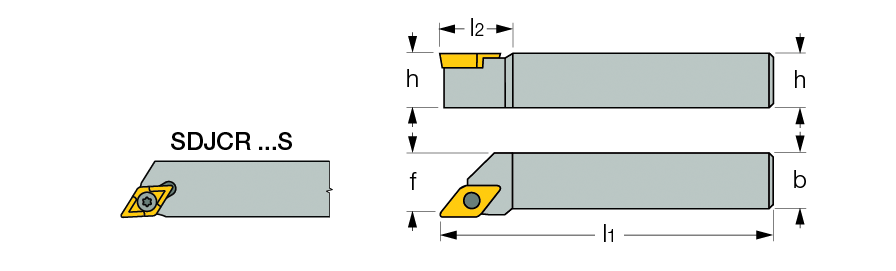

Designation
h
b
l1
l2
f
Ga°
Gr°
R/L
SDJCL 0808F-07
8.0
8.0
80.00
11.5
10.0
0
0
L
SDJCR 0808F-07
8.0
8.0
80.00
11.5
10.0
0
0
R
SDJCL 1010F-07
10.0
10.0
80.00
11.5
12.0
0
0
L
SDJCR 1010F-07
10.0
10.0
80.00
11.5
12.0
0
0
R
SDJCL 1212K-07S
12.0
12.0
125.00
-
12.2
0
0
L
SDJCR 1212K-07S
12.0
12.0
125.00
-
12.2
0
0
R
SDJCL 1616K-07S
16.0
16.0
125.00
-
16.2
0
0
L
SDJCR 1616K-07S
16.0
16.0
125.00
-
16.2
0
0
R
SDJCL 1010K-11S
10.0
10.0
125.00
21.4
10.2
0
0
L
SDJCR 1010K-11S
10.0
10.0
125.00
21.4
10.2
0
0
R
SDJCL 1212F-11
12.0
12.0
80.00
20.0
16.0
0
0
L
SDJCR 1212F-11
12.0
12.0
80.00
20.0
16.0
0
0
R
SDJCL 1616H-11
16.0
16.0
100.00
20.0
20.0
0
0
L
SDJCR 1616H-11
16.0
16.0
100.00
20.0
20.0
0
0
R
SDJCL 2020K-11
20.0
20.0
125.00
20.0
25.0
0
0
L
SDJCR 2020K-11
20.0
20.0
125.00
20.0
25.0
0
0
R
SDJCL 2525M-11
25.0
25.0
150.00
20.0
32.0
0
0
L
SDJCR 2525M-11
25.0
25.0
150.00
20.0
32.0
0
0
R
