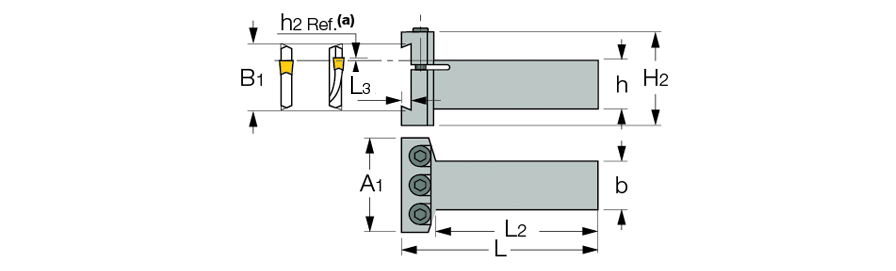

SGTBF :  Perpendicular blocks for parting and grooving blades.


  Designation
h
b
B1
L
L2
A1
H2
L3
  SGTBF 25-A  25.0  25.0  32.0  102.00  80.00  48.00  48.0  5.50
  SGTBF 32-A  32.0  32.0  32.0  116.00  100.00  48.00  48.0  5.50

(a) h2 Ref. as defined for SELF-GRIP face grooving blades
