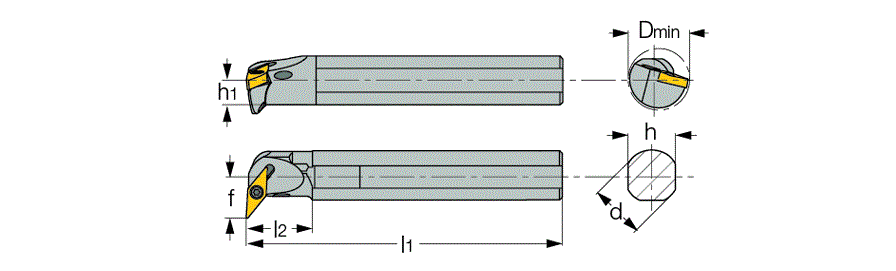

A-SVUNR/L :  Boring bars with internal coolant holes for 35° negative rhombic inserts.
 Right-hand shown

Int. 35° diamond 93° approach COOLANT
  Designation
d
l1
l2
h
h1
f		 D
min
Ga°
Gr°
R/L
  A20Q SVUNL-12  20.00  180.00  38.0  18.0  9.0  16.0  26.50  -6.5  -14  L
  A20Q SVUNR-12  20.00  180.00  38.0  18.0  9.0  16.0  26.50  -6.5  -14  R
