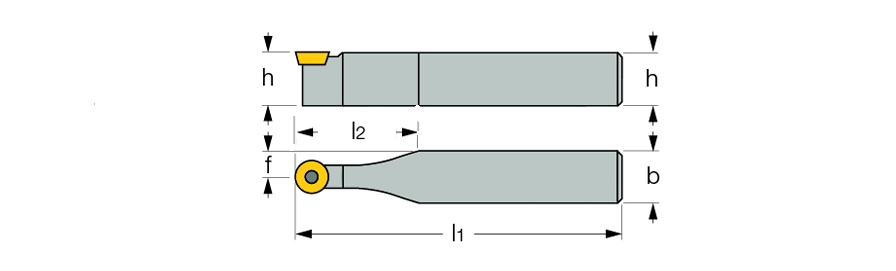

SRDCN :  Screw lock neutral toolholders for round inserts with 7° clearance angle.


Ext. round insert neutral
  Designation
h
b
l1
l2
f
Ga°
Gr°
  SRDCN 1616H-08  16.0  16.0  100.00  33.0  8.0  0  0
  SRDCN 2020K-10  20.0  20.0  125.00  38.0  10.0  0  0
  SRDCN 2525M-12  25.0  25.0  150.00  50.0  12.5  0  0
  SRDCN 3225P-12  32.0  25.0  170.00  50.0  12.5  0  0
  SRDCN 3225P-16  32.0  25.0  170.00  50.0  12.5  0  0
  SRDCN 3232P-20  32.0  32.0  170.00  50.0  16.0  0  0
