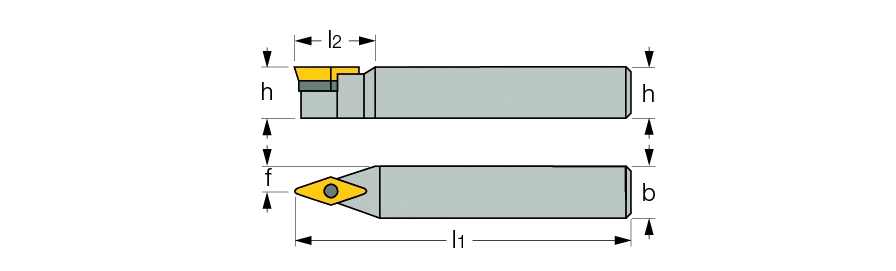

SVVCN :  72.5° lead angle screw lock toolholders for 35° diamond inserts with 7° clearance angle.


Ext. 35° diamond 72.5° approac
  Designation
h
b
l1
l2
f
Ga°
Gr°
  SVVCN 1010K-11S  10.0  10.0  125.00  -  5.3  0  0
  SVVCN 1212K-11S  12.0  12.0  125.00  -  6.3  0  0
  SVVCN 1616K-11S  16.0  16.0  125.00  -  8.3  0  0
  SVVCN 2020K-16  20.0  20.0  125.00  34.0  10.0  0  0
  SVVCN 2525M-16  25.0  25.0  150.00  38.1  12.5  0  0
