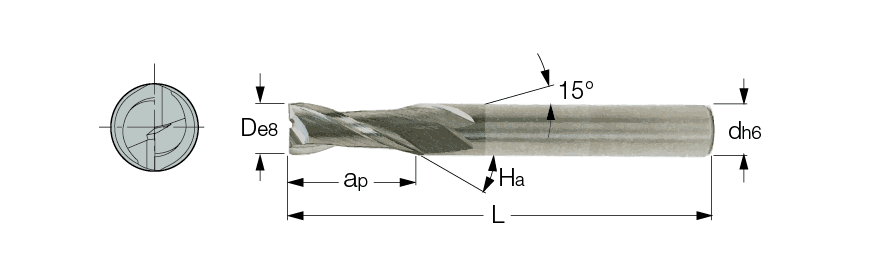

EC-A-2 : 2 flute, 30 and 45° helix medium length solid carbide slot / drill endmills.

Designation	D	d	ap	L	Flute	Ha°	Rd°	Shank	fz (min)	fz (max)	Grade
EC065A20-2C07	6.50	7.00	20.00	60.00	2	30.0	5.0	C	0.03	0.07	IC300
EC070A20-2C07	7.00	7.00	20.00	60.00	2	30.0	5.0	C	0.03	0.08	IC08 IC300
EC080A20-2C08	8.00	8.00	20.00	63.00	2	30.0	5.0	C	0.03	0.09	IC08 IC300 IC900
