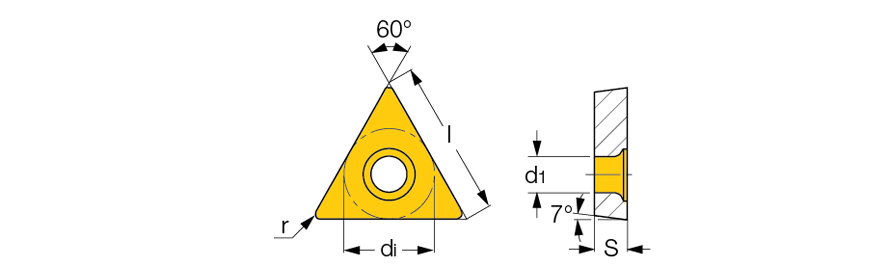

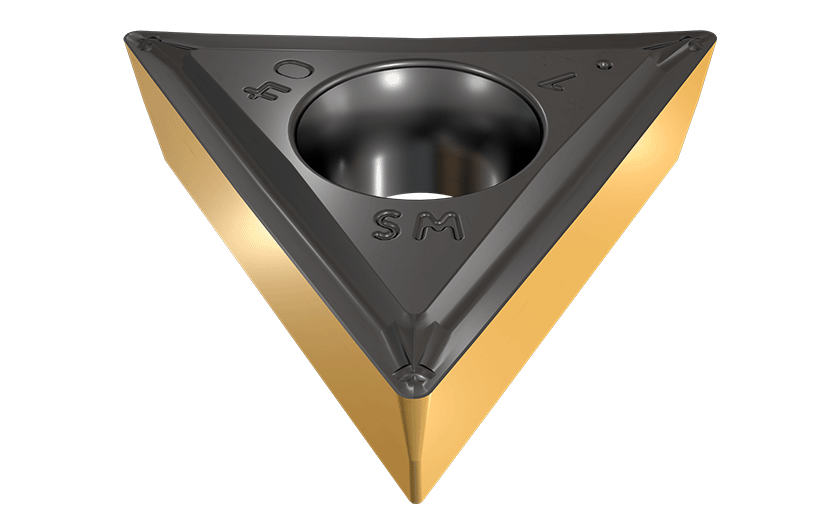

TCMT-SM :  Triangular 7° positive flank inserts for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys.


Ext. 60° triangle 91° approach Ext. 60° triangle facing Int. 60° triangle 91° approach Int. 60° triangle 95° approach
  Designation
l
di
S
r
d1		 ft
(min)		 ft
(max)		 ap
(min)		 ap
(max)
  Grade
  TCMT 110204-SM  11.00  6.35  2.38  0.40  2.80  0.05  0.25  0.20  3.00 IC8350 IC9350 IC8250 IC9250 IC908 IC8150 IC9150 IC807 IC907 IC5010 IC5005
  TCMT 110208-SM  11.00  6.35  2.38  0.80  2.80  0.07  0.25  0.50  2.50 IC9250 IC807 IC907
  TCMT 16T304-SM  16.50  9.52  3.97  0.40  4.40  0.06  0.25  0.50  3.00 IC3028 IC8250 IC9250 IC8150 IC9150 IC807 IC907 IC570 IC428 IC5005
  TCMT 16T308-SM  16.50  9.52  3.97  0.80  4.40  0.08  0.28  0.50  3.00 IC3028 IC9350 IC8250 IC9250 IC8150 IC9150 IC807 IC907 IC5005
  TCMT 22T308-SM  22.00  12.70  3.97  0.80  5.50  0.20  0.35  0.50  4.00 IC9150

For dimensions and tolerances, see more info.
