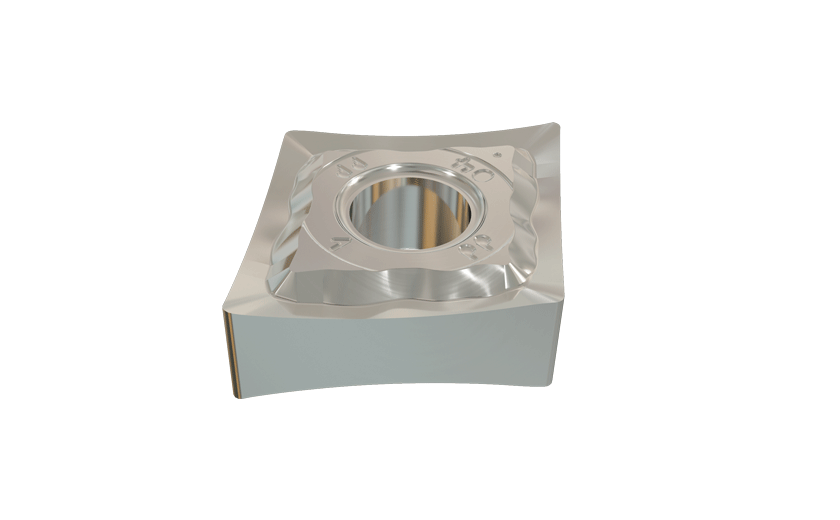

CNMG/CNGG-PP :  Double-sided 80° rhombic inserts with a positive rake angle and sharp, positive radial edge. Used for machining very ductile materials like aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys.


Ext. 100° diamond 75° approach Ext. 100° diamond, face 75°app Ext. 80° diamond 95° approach Int. 80° diamond 95° approach
  Designation
l
di
S
r		 ft
(min)		 ft
(max)		 ap
(min)		 ap
(max)
  Grade

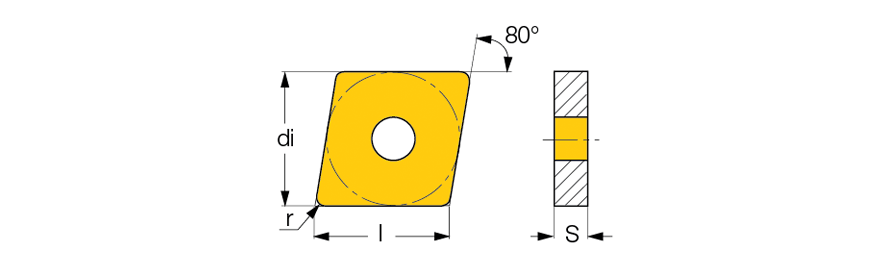

  CNMG 431-PP  .508  .500  .187  .016  .0055  .0118  .039  .157 IC10 IC3028 IC8350 IC9350 IC6025 IC8250 IC9250 IC6015 IC9150 IC807 IC907
  CNMG 432-PP  .508  .500  .187  .031  .0055  .0118  .039  .157 IC10 IC28 IC3028 IC8350 IC9350 IC6025 IC8250 IC9250 IC6015 IC8150 IC9150 IC507 IC806 IC807 IC907 IC428
  CNMG 433-PP  .508  .500  .187  .047  .0071  .0157  .059  .157 IC8250 IC507 IC807 IC907 IC20N
  CNMG 643-PP  .760  .750  .250  .047  .0118  .0236  .079  .315 IC807 IC907
  CNGG 430-PP  .508  .500  .187  .004  .0020  .0079  .016  .079 IC907
  CNGG 430.5-PP  .508  .500  .187  .008  .0031  .0098  .016  .098 IC907
  CNGG 431-PP  .508  .500  .187  .016  .0039  .0118  .031  .118 IC907
  CNGG 432-PP  .508  .500  .187  .031  .0039  .0118  .039  .157 IC806 IC907
  CNGG 433-PP  .508  .500  .187  .047  .0039  .0118  .039  .157 IC806
  CNGG 643-PP  .760  .750  .250  .047  .0118  .0236  .079  .354 IC907

For dimensions and tolerances, see more info.
