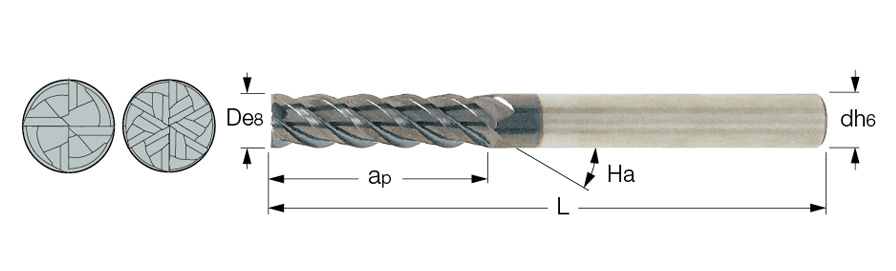

ECL-B-4/6 :  4 & 6 flute, 45° helix long solid carbide endmills.


Shouldering Slotting
  Designation
D
d
ap
L
Flute
Ha°
ShankC-Cylindrical, W-Weldon		 fz
(min)		 fz
(max)
  Grade
  ECL160B56-6C16  16.00  16.00  56.00  115.00  6  45.0  C  0.05  0.13 IC900

Smooth cutting in extra long depth
