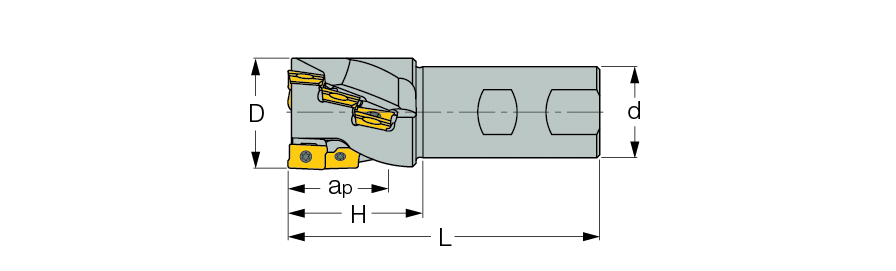

3M AXK-13 :  MILL2000, Heavy duty, extended flute endmills carrying 3M AXKT 1304... inserts with dovetail section shape, helical cutting edges and positive rake angle. Enable a secure clamping and high durability in rough applications.


Shouldering Slotting
  Designation
D

ap

Flute

Z

H

L

d

ShankC-Cylindrical, W-Weldon

Kg
  3M AXK D50-60-5-W40-13  50.00  60.50  5  25  65.00  140.00  40.00  W  1.51

For adaptation click on "More Info"
Reduce feed by 50% during engagement and exit from the workpiece. This practice will substantially increase insert life.
