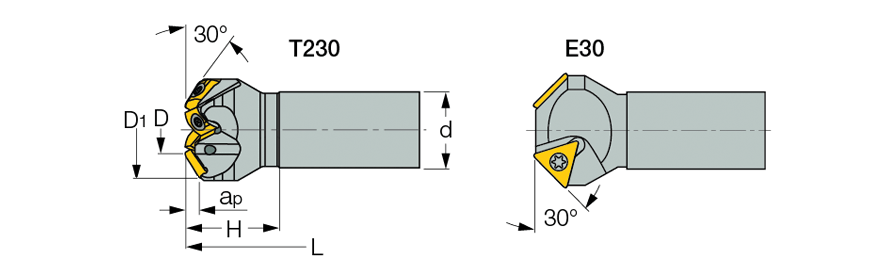

E30 / T230 :  30° chamfering endmills.


Countersinking Slanted shoulder. & chamfer.
  Designation
D
D1
Z
ap
L
H
d
ShankC - Cylindrical, W - Weldon
Kg
Coolant
  T230 ELN D12-4-C16-05  12.00  21.5  4  2.50  90.00  20.00  16.00  C  0.13  Y
  T230 ELN D12-4-W16-05  12.00  21.5  4  2.50  90.00  20.00  16.00  W  0.17  Y
  E30 D16-W25  16.00  40.9  3  7.00  100.00  36.40  25.00  W  0.42  N

For adaptation, click on "More Info".
