SVJCR/L-16-JHP :  93° lead angle, screw lock toolholders for 35° diamond inserts with 7° clearance angle and channels for high pressure coolant.


Ext. 35° diamond 93° approach 300 BAR (4350 PSI) MAX.
Related insert for : SVJCR/L-16-JHP

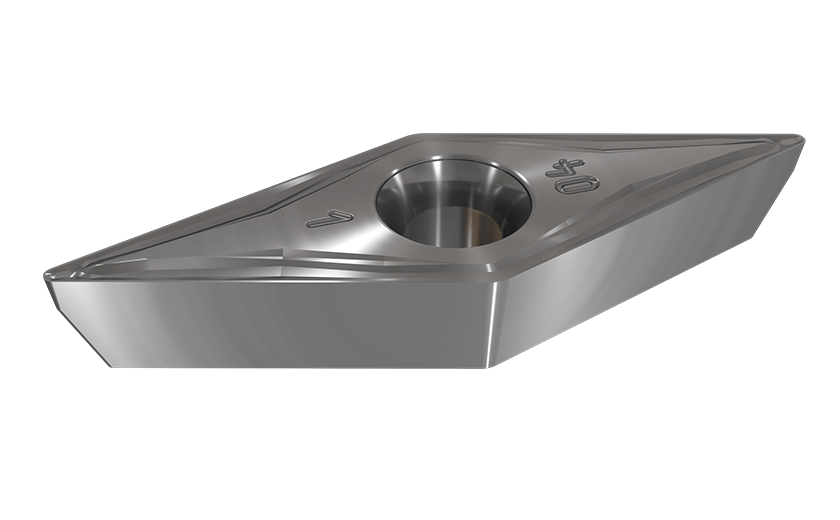

VCMT-14 VCMT-14
35° Rhombic 7° Positive Flank Inserts for Semi-Finish and Finish Turning on Soft Materials and Exotic Alloys

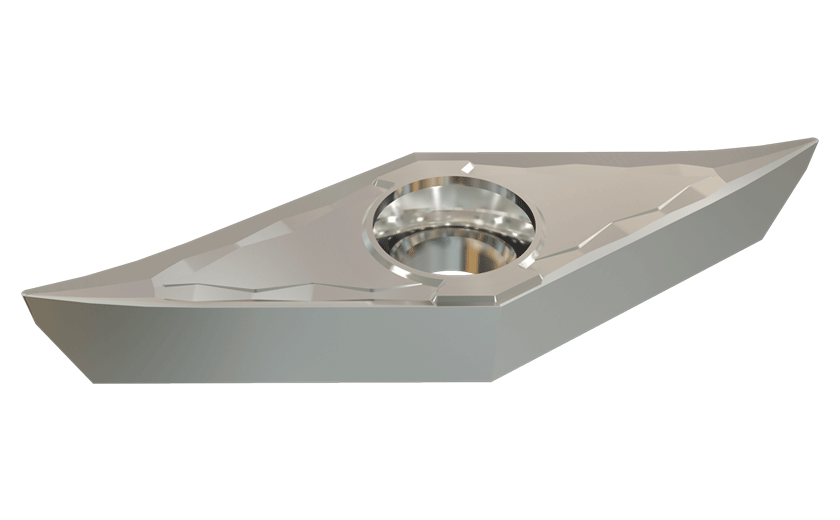

VCGT-AS VCGT-AS
35° Rhombic 7° Positive Flank, Very Positive Rake Angle and Sharp Cutting Edge for Machining Aluminum

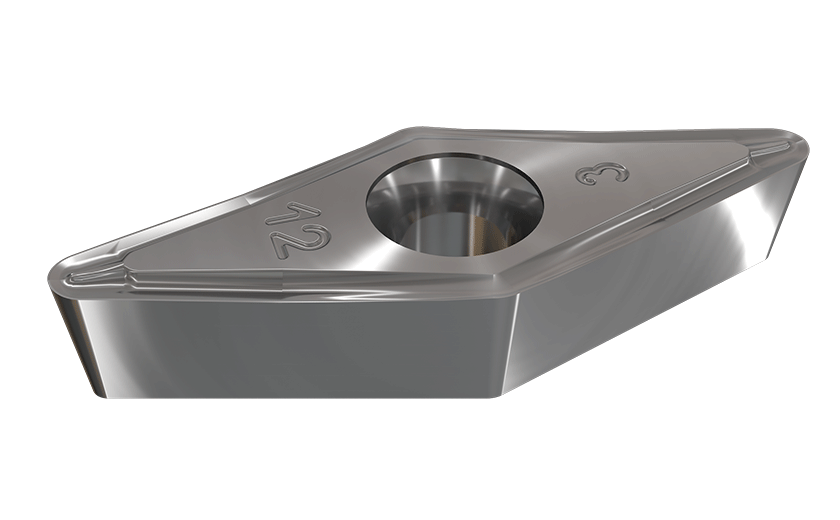

VCMT-SM VCMT-SM
35° Rhombic 7° Positive Flank Inserts for Semi-Finish and Finish Turning on Soft Materials and Exotic Alloys

VCGT/VCMT (PCD & CBN) VCGT/VCMT (PCD & CBN)
35° Rhombic Single Brazed Tip Corner Inserts for Finishing Aluminum (PCD) and Cast Iron (CBN)

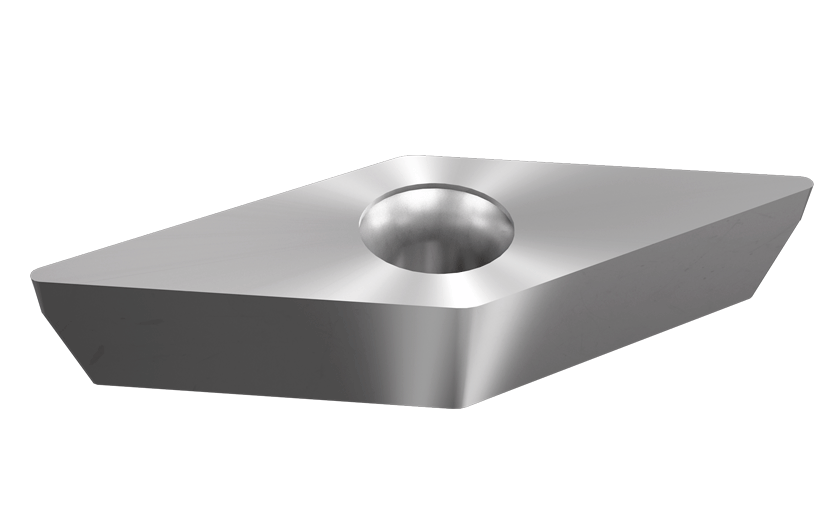

VCMW VCMW
35° Rhombic 7° Positive Flank Inserts for Short Chipping Materials such as Cast Iron

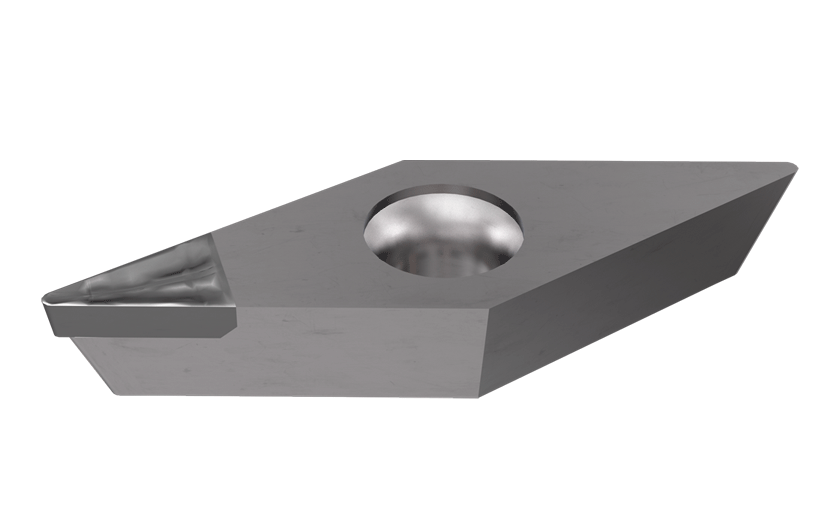

VCGT-DW (PCD) VCGT-DW (PCD)
7° Clearance Inserts with a Chipformer for Machining Aluminum and PCD Single Top Corner Tip
