 Boring      Family: ADBH Sleeve for Fine Boring Holders, Used on the MB Boring Modular System       Designation: ADBH 30XD16

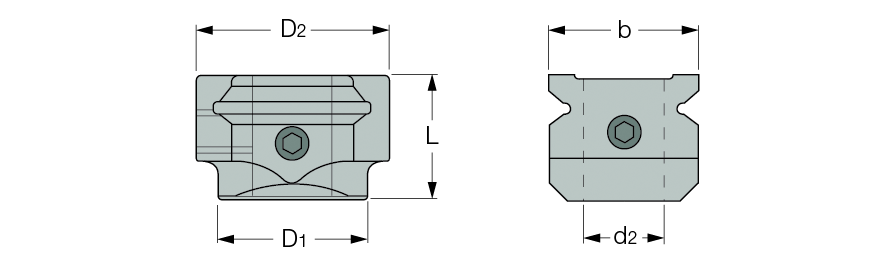

D1 L D2 b d2 Kg
 30.0   25.00   39.00   30.5   16.00   0.15

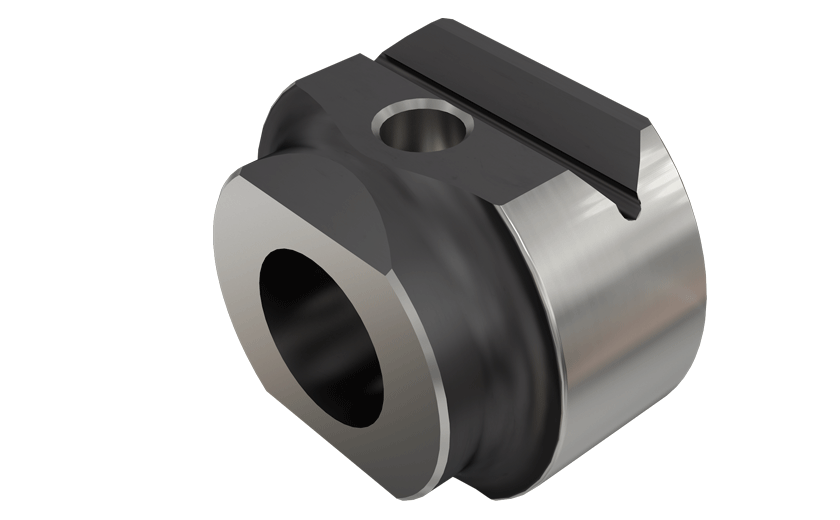

  Catalog No Primary View
File (2D)		 Model (3D) Light Model (3D) Detail
  4550280 Not Available
3D Required		 Not Available
3D Required
