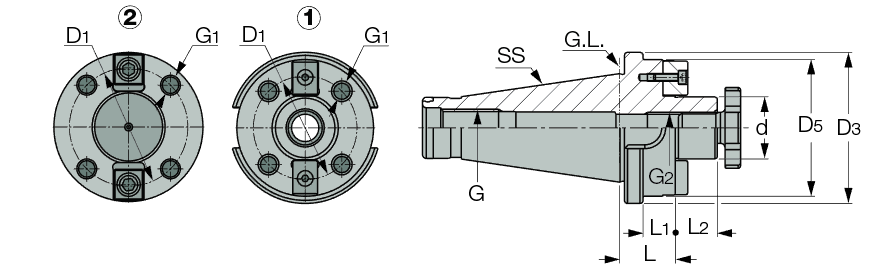

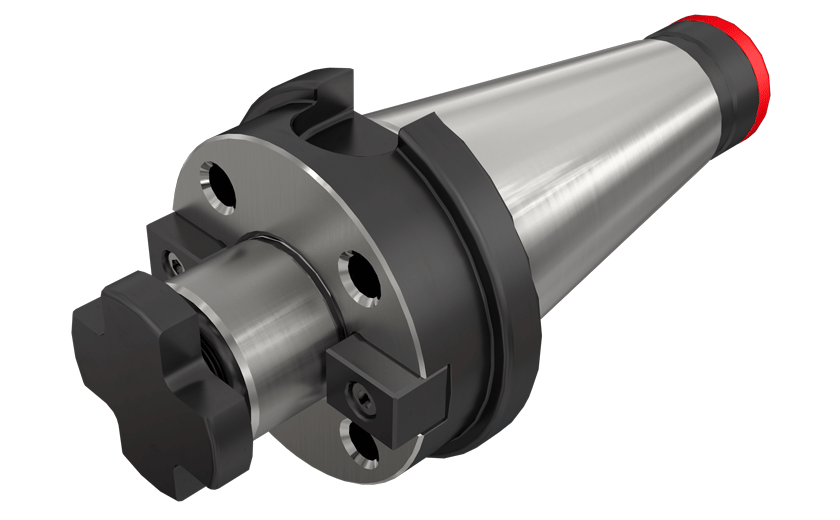

| Tooling Family: DIN2080-FM DIN 6357 face mill holder with DIN 2080 taper shank. Designation: DIN2080 50 FM 40 |
  |
|
|
|
|
| S.s |
d |
L2 |
L |
L1 |
D3 |
D1 |
D5 |
G1 |
G2 |
G |
Kg |
| 50 |
40.00 |
27.00 |
36.00 |
20.8 |
97.50 |
88.0 |
66.70 |
M20 |
M12 |
M24 |
4.00 |
|
Catalog No |
2D |
3D |
| 4547002 |
 |
Not Available |
 |
M 20 CLAMP SCREW SEM 40 |
|
 |
WRENCH M20 SEMC 40
(Optional, should be ordered separately) |
|
|
|
|
|
|
