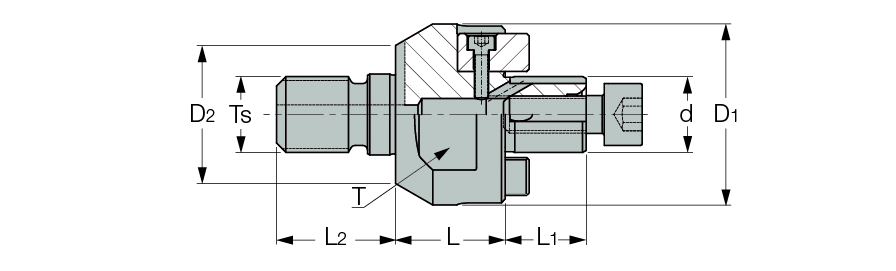

 Tooling      Family: CAB M-SEM FLEXFIT to Face mill arbor adapter       Designation: CAB M16 SEM 16 C Cutting Conditions Machine Power


Ts d L D1 L1 D2 L2 T Clamping wrench size Kg
 M16  16.00  23.00  38.0  17.0  29.00  25.00  30.0  0.00

  Catalog No
2D
3D
  4509437 Not Available Not Available

7002454  SR M8X25
