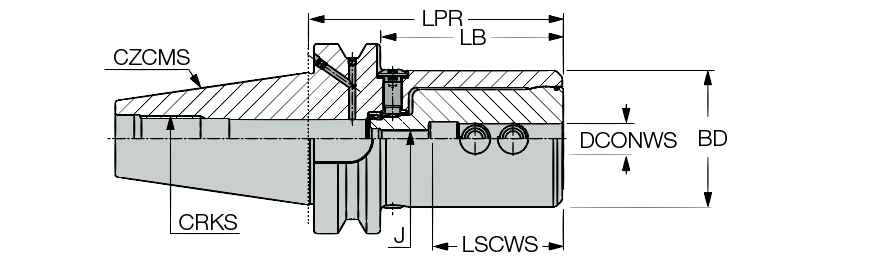

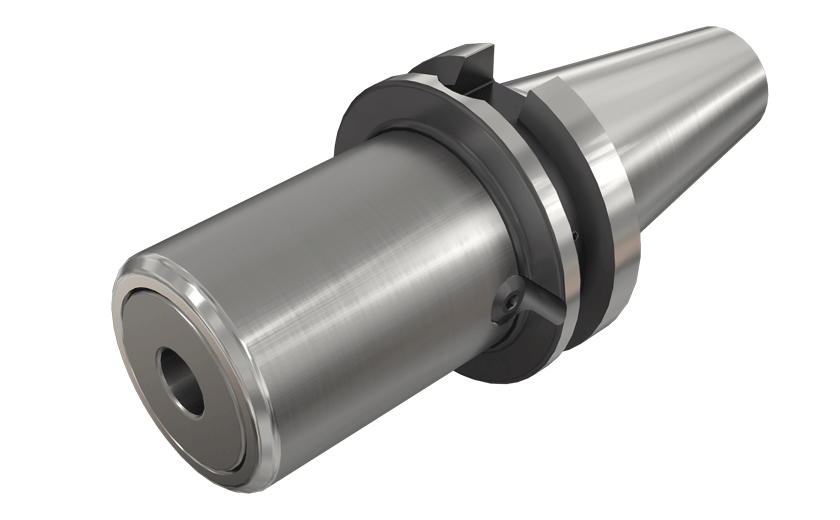

| Tooling Family: FITBORE BT-EM FITBORE holder with a BT MAS taper shank. Used for adjusting the drilling diameter by center offsetting. Designation: FITBORE BT50 EM32 |
  |
|
|
|
|
| S.s |
d2 |
D1 |
L |
L1 |
L4 |
J |
G |
Cool |
Kg |
| 50 |
32.00 |
72.0 |
134.50 |
96.5 |
71.0 |
M10 |
M24 |
- |
6.12 |
|
Catalog No |
2D |
3D |
| 4560004 |
 |
Not Available |
 |
SR M16X16 DIN 1835-B |
|
 |
HW 4P |
|
|
|
|
|
|
