 Tooling      Family: DIN69871-MT DIN 6383 Morse taper adapter with a DIN 228-2 form D tang and a DIN 69871 form A taper shank.       Designation: DIN69871 50 MT4X 95 Cutting Conditions Machine Power

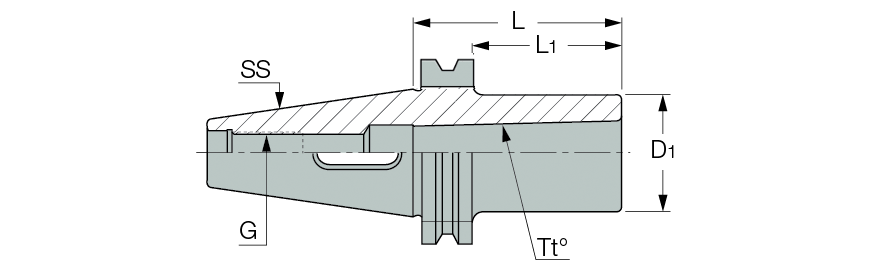

S.s Tt° L L1 D1 G Kg
 50  MT4  95.00  75.9  48.0  M24  3.18

  Catalog No
2D
3D
  4539006 Not Available
