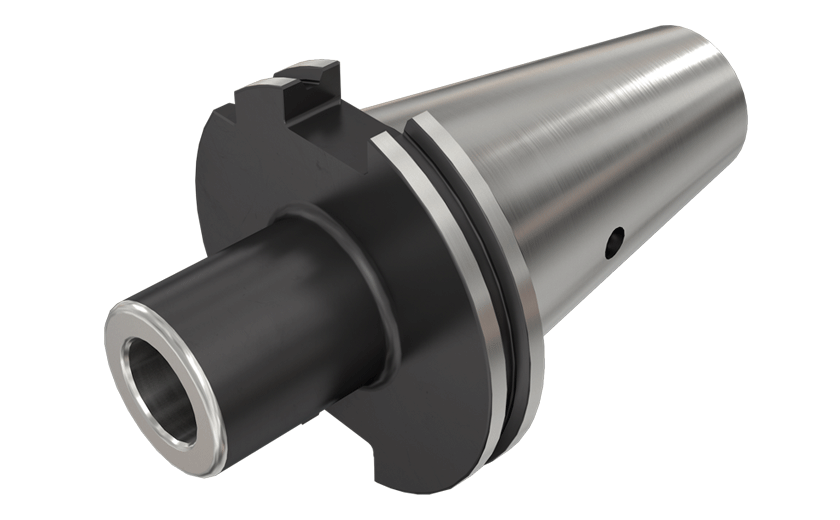

| Tooling Family: DIN69871-MT-DRW DIN 6364 Morse taper adapter with a DIN 228-2 form B draw bar and a DIN 69871 form A taper shank. Designation: DIN69871 40 MT2 DRW |
  |
|
|
|
|

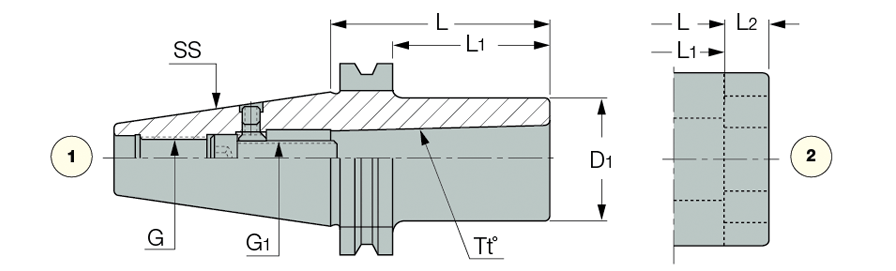

| S.s |
Tt° |
L |
L1 |
L2 |
D1 |
G1 |
G |
Fig |
Kg |
| 40 |
MT2 |
50.00 |
30.9 |
- |
32.0 |
M10 |
M16 |
1 |
1.00 |
|
Catalog No |
2D |
3D |
| 4540002 |
 |
Not Available |
|
|
