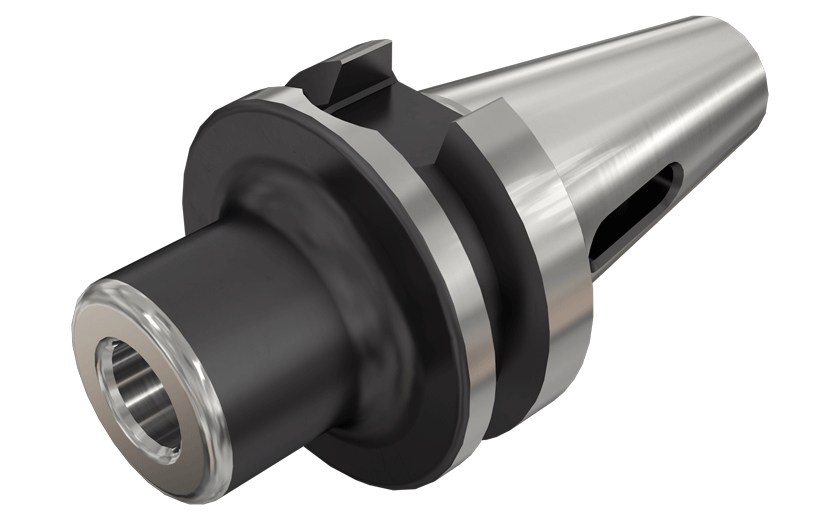

 Tooling      Family: BT-MT DIN 6383 / DIN228-2 form D tang Morse taper adapter with BT MAS-403 taper shank.       Designation: BT40 MT1X120 Cutting Conditions Machine Power

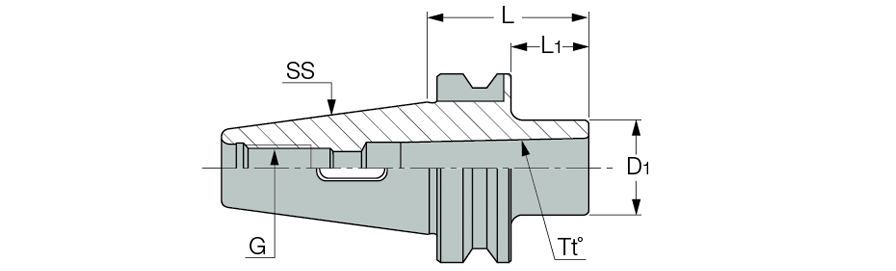

S.s Tt° L L1 D1 G Kg
 40  MT1  120.00  25.0  25.0  M16  1.40

  Catalog No
2D
3D
  4500393 Not Available
