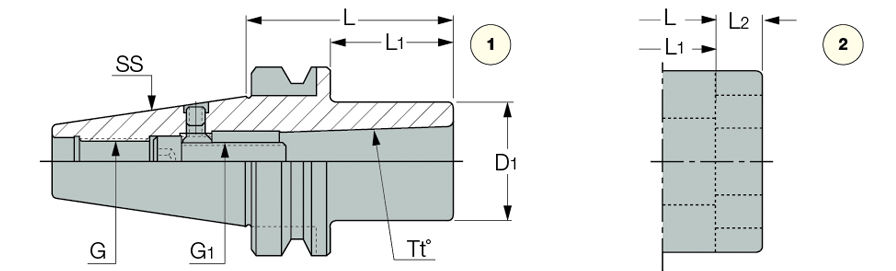

| Tooling Family: BT-MT-DRW DIN 6364 / DIN 228-2 form B draw bar Morse taper adapter with BT MAS-403 taper shank. Designation: BT40 MT1 DRW |
  |
|
|
|
|
| S.s |
Tt° |
L |
L1 |
L2 |
D1 |
G1 |
G |
Fig |
Kg |
| 40 |
MT1 |
50.00 |
23.0 |
- |
25.0 |
M6 |
M16 |
1 |
1.10 |
|
Catalog No |
2D |
3D |
| 4500390 |
 |
Not Available |
 |
SR M6X20 DIN 912 |
|
|
|
|
|
|
