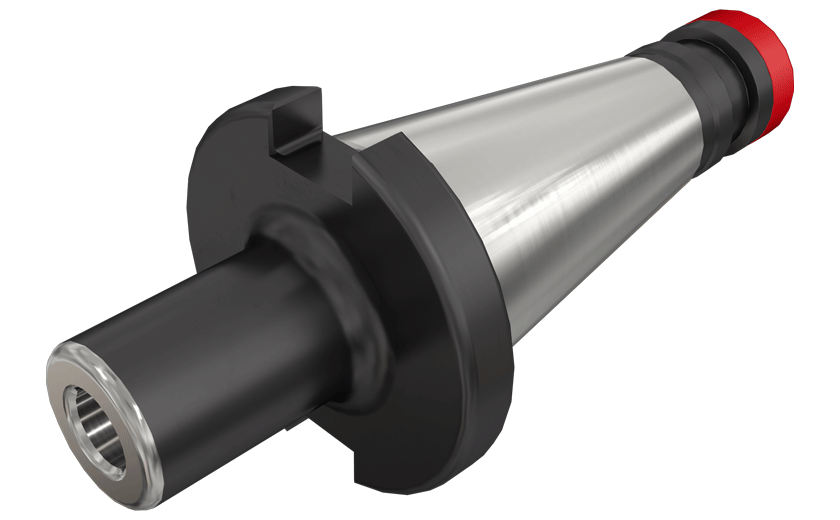

| Tooling Family: DIN2080-MT-DRW DIN 6364 Morse taper adapter with DIN228-2 form B draw bar and DIN 2080 taper shank. Designation: DIN2080 50 MT5 DRW |
  |
|
|
|
|

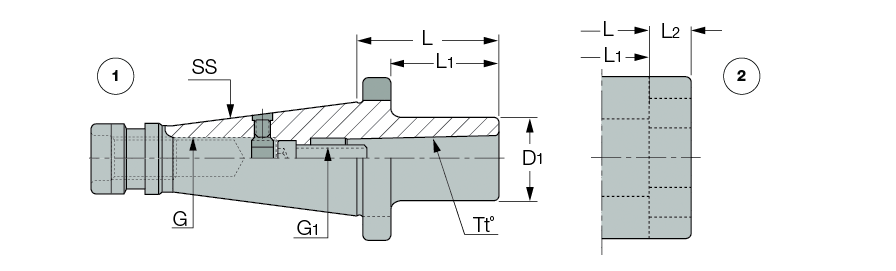

| S.s |
Tt° |
L |
L1 |
L2 |
D1 |
G1 |
G |
Fig |
Kg |
| 50 |
MT5 |
100.00 |
84.4 |
18.00 |
78.0 |
M20 |
M24 |
2 |
4.93 |
|
Catalog No |
2D |
3D |
| 4524007 |
 |
Not Available |
 |
SR M20X55 DIN 7984 |
|
|
|
|
|
|
