 Milling      Family: ECC-A-2 Solid carbide medium length endmills, 2 flutes, 30° helix, center cutting with chamfered corners.       Designation: ECC020B07-2C03 Cutting Conditions Machine Power

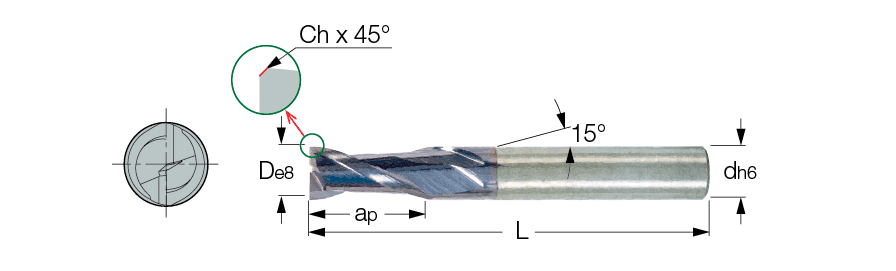

D d Flut Ap L Ha° Rd° Shank C-cylindrical, W-Weldon. Ch
 2.00  3.00  2  7.00  38.00  45.0  5.00  C  0.10X45

  Catalog No Grade Alternative
2D
3D
 Remark
  5620245 IC300 Alternative Not Available 45° Helix.
  5621566 IC900 Alternative Not Available
