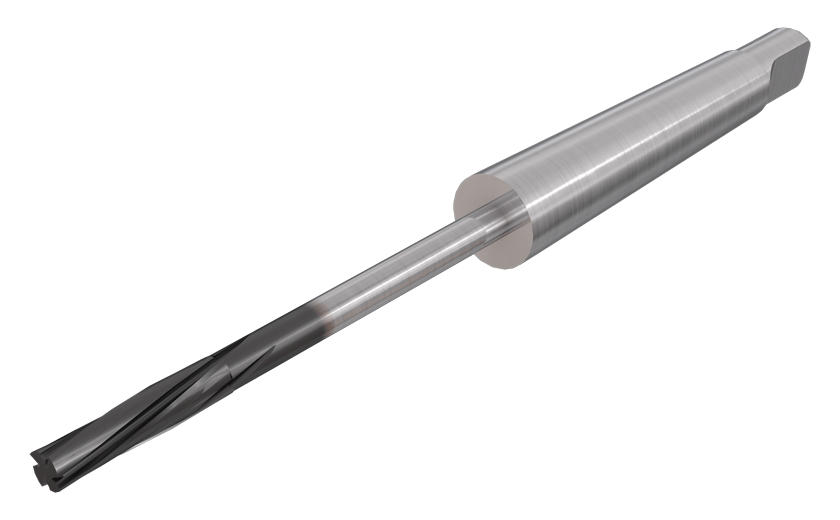

 Reaming      Family: RM-SHR-H7N-MT Solid carbide reamers with Morse taper shank, spiral flute, DIN 8093.       Designation: RM-SHR-2800-H7N-MT3-CB 07 Cutting Conditions Machine Power

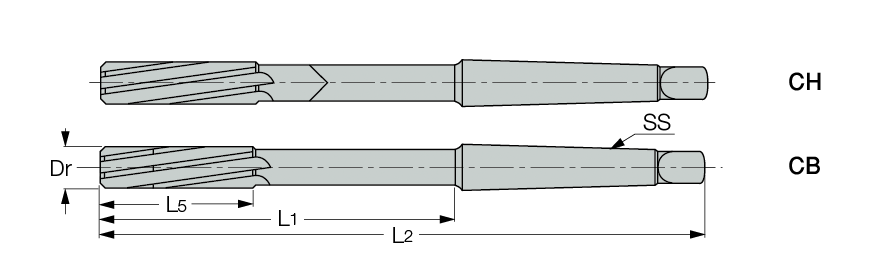

D L2 L1 L3 Flut Tt°
 28.00  277.0  178.0  71.0  8  MT3

  Catalog No
2D
3D
  4440095 Not Available Not Available
