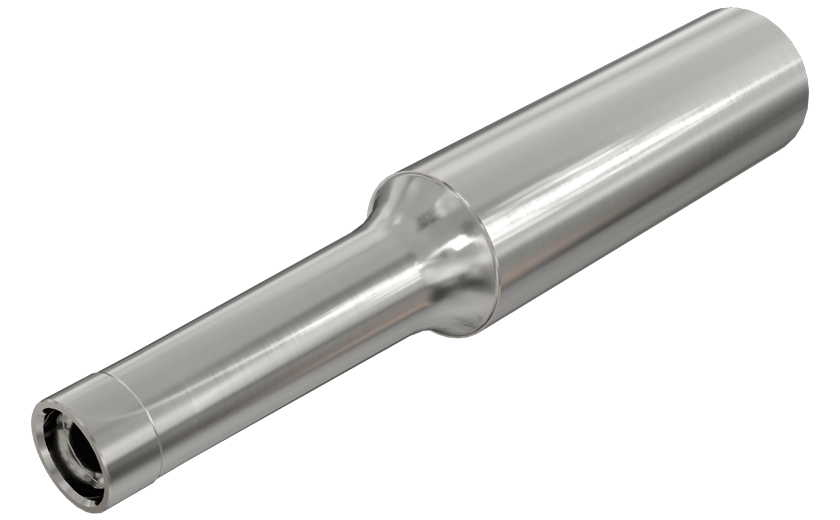

 Reaming      Family: RM-BNT-3D/5D/8D (Shanks) Shanks for the BAYOT-REAM interchangeable head reamers.       Designation: RM-BNT5-5D-16C Cutting Conditions Machine Power

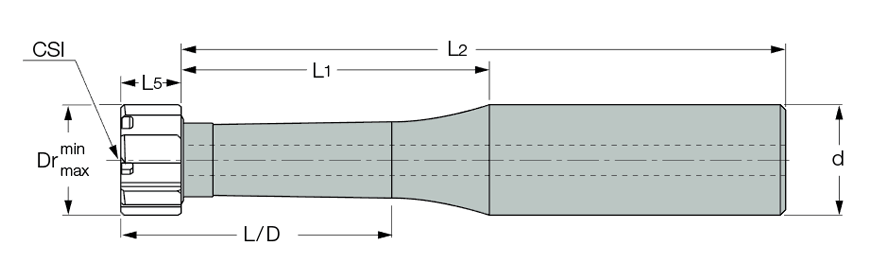

L/D C.Si D min D max S L2 L1 d Shank C-Cylindrical, W-Weldon*, M-Morse* Shank. MS-Steel, C-Carbide*, W-Heavy metal*
 5.00  BN5  11.50  13.50  9.30  125.0  77.0  16.00  C  S

  Catalog No
2D
3D
  4440158 Not Available Not Available

7004204  RM-BN5-K

7004227  RM-BN5-SR
