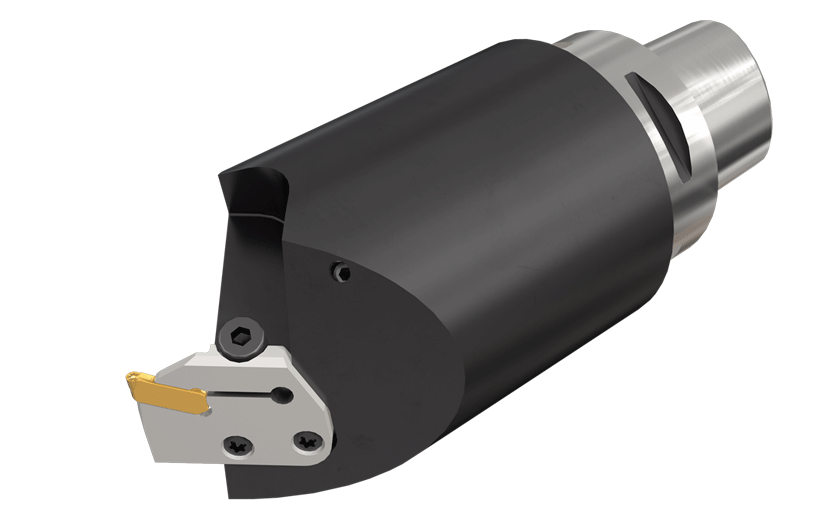

| Tooling Family: C-MAHDR-45 Holders for 45° mounting on turn-mill machines compatible with COROMANT CAPTO® system. Used for several GRIP adapters. Designation: C6 MAHDR-45 |
  |
|
|
|
|

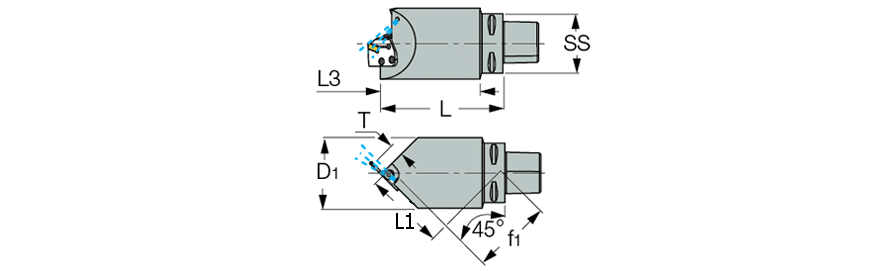

| S.s |
S. Std. |
L |
L1 |
f1 |
D1 |
L3 |
R/L |
| 63 |
C6 |
130.00 |
91.9 |
89.0 |
75.0 |
105.78 |
R |
|
Catalog No |
2D |
3D |
| 2801472 |
 |
 |
 |
HW 4.0 |
|
 |
SR 14-519 |
|
 |
T-20/5 |
|
 |
EZ 83 |
|
 |
SR M6X6 DIN 551 |
|
|
SR M5-04451 |
|
 |
SR M6X20 DIN 7984 |
|
|
|
|
|
|
