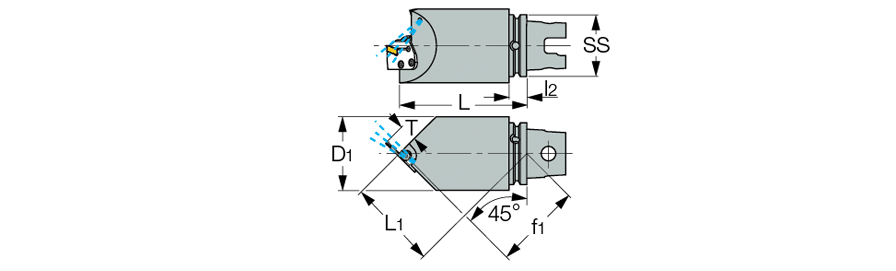

| Tooling Family: KM63 XMZ MAHDR-45 Holders for all GRIP adapters, 45° mounting on Turn-Mill machines with KM® XMZ adaptation (for Mazak Integrex machines). Designation: KM63 XMZ MAHDR-45 |
  |
|
|
|
|
| S.s |
L |
L1 |
f1 |
D1 |
l2 |
R/L |
| KM63 |
130.00 |
91.9 |
89.0 |
75.0 |
18.0 |
R |
|
Catalog No |
2D |
3D |
| 2801471 |
Not Available |
Not Available |
 |
HW 5.0 |
|
 |
T-20/5 |
|
 |
EZ 83 |
|
 |
SR M5-04451 |
|
 |
SR M6X20 DIN 7984 |
|
|
|
|
|
|
