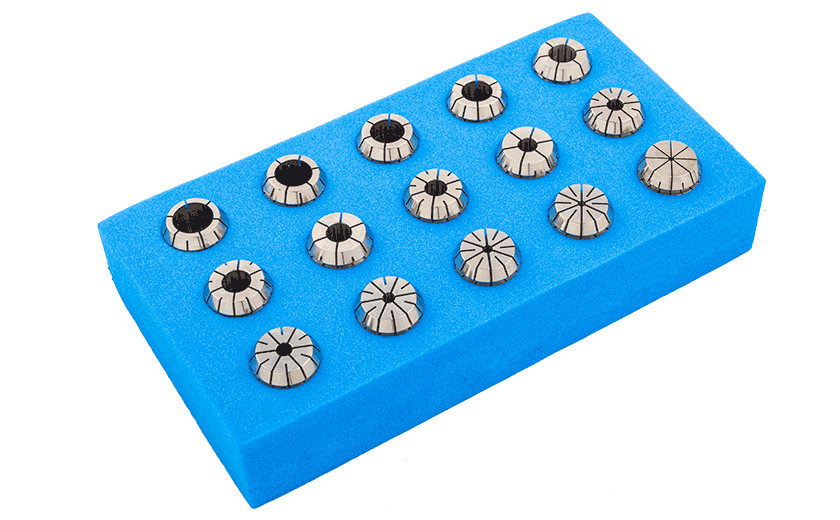

 Tooling      Family: SET ER-SPR Sets of DIN 6499 ER spring collets with Hard Touch coating.       Designation: SET ER16 SPR 10 Cutting Conditions Machine Power

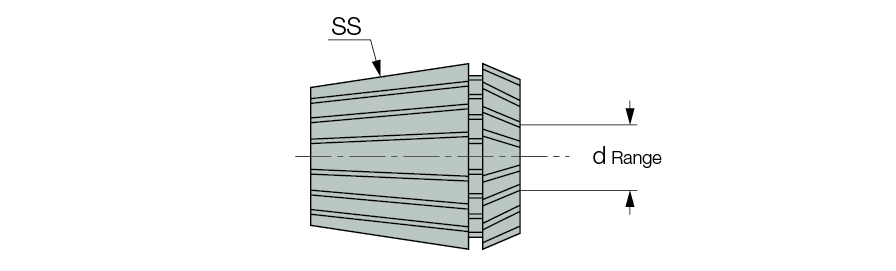

S.s Qty d range d min d max
 ER16  10  0.5-10  0.5  10.0

  Catalog No
2D
3D
  4512001 Not Available Not Available

 Item Description Quantity Image
 4500101   ER16 SPR 2- 3
 4500102   ER16 SPR 3- 4
 4500103   ER16 SPR 4- 5
 4500104   ER16 SPR 5- 6
 4500105   ER16 SPR 6- 7
 4500106   ER16 SPR 7- 8
 4500107   ER16 SPR 9- 10
 4500175   ER16 SPR 8- 9
 4500183   ER16 SPR 1- 2
 4500262   ER16 SPR 0.5- 1
