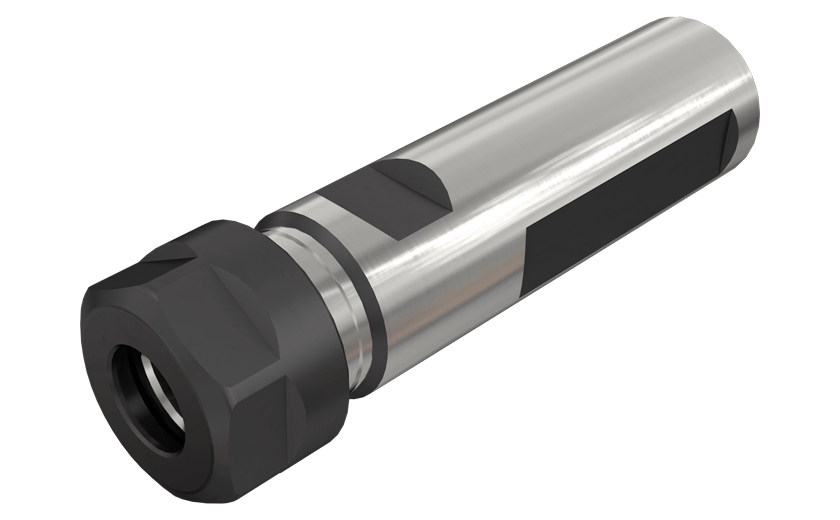

 Tooling      Family: KIT ST-ER The kit contains 1 ER collet chuck with a straight shank and a set of collets in various bore sizes.       Designation: KIT ST20X100 7 ER11 Cutting Conditions Machine Power

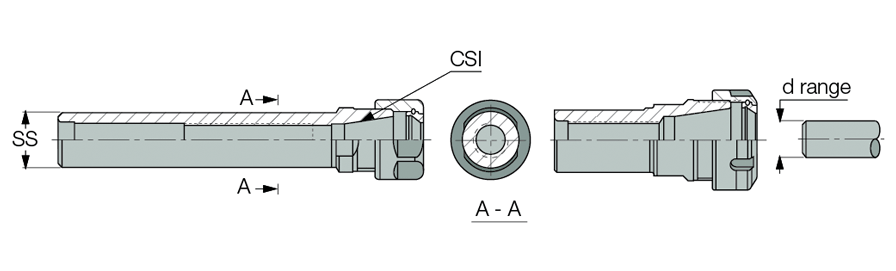

S.s C.Si d range Qty
 20  ER11  0.5-7  7

  Catalog No
2D
3D
  4503026 Not Available Not Available

 Item Description Quantity Image
 4500176   ER11 SPR 1- 2  1
 4500177   ER11 SPR 2- 3  1
 4500178   ER11 SPR 3- 4  1
 4500179   ER11 SPR 4- 5  1
 4500180   ER11 SPR 5- 6  1
 4500181   ER11 SPR 6- 7  1
 4500184   ER11 SPR 0.5- 1  1
 4507007   ST 20X100 ER11  1
 4513071   WRENCH ER11  1
