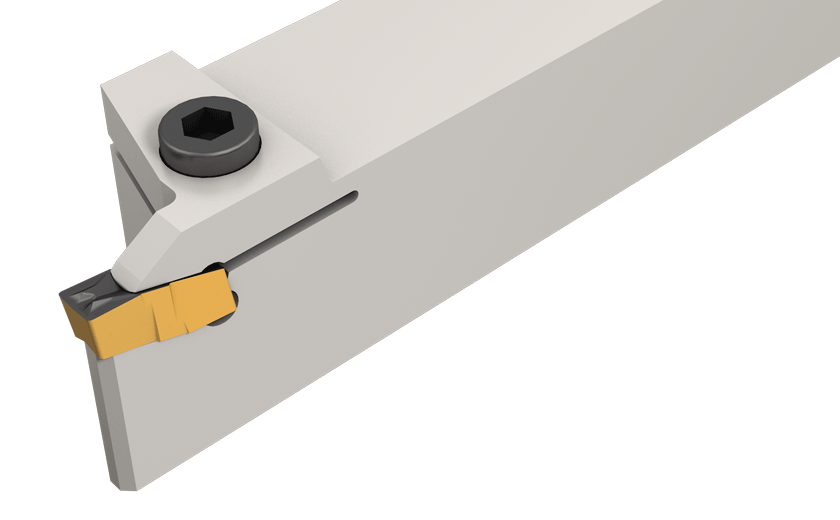

 Turn- Groove Parting Facing      Family: GHDR/L (Short pocket) External Holders for Turning, Grooving and Parting       Designation: GHDR 16-4 ST Cutting Conditions Machine Power

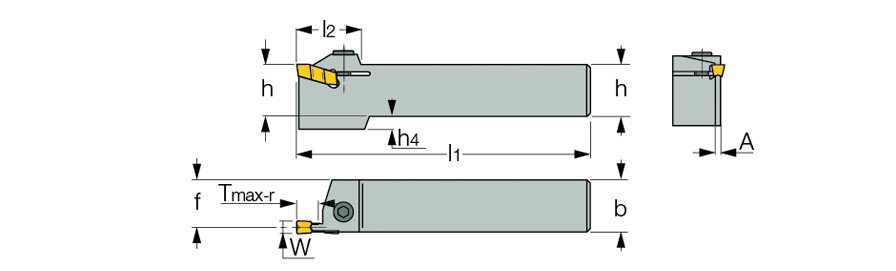

h W min W max Tmax-r h1 b l1 l2 f A h4 R/L
 16.0  4.00  5.40  10.00  15.7  15.7  78.00  23.6  14.0  3.40  4.0  R

  Catalog No
2D
3D
 Remark
  2800151 Not Available For STAR and multispindle machines.

7000045  HW 5.0

7001842  SR M6X20 DIN 912
