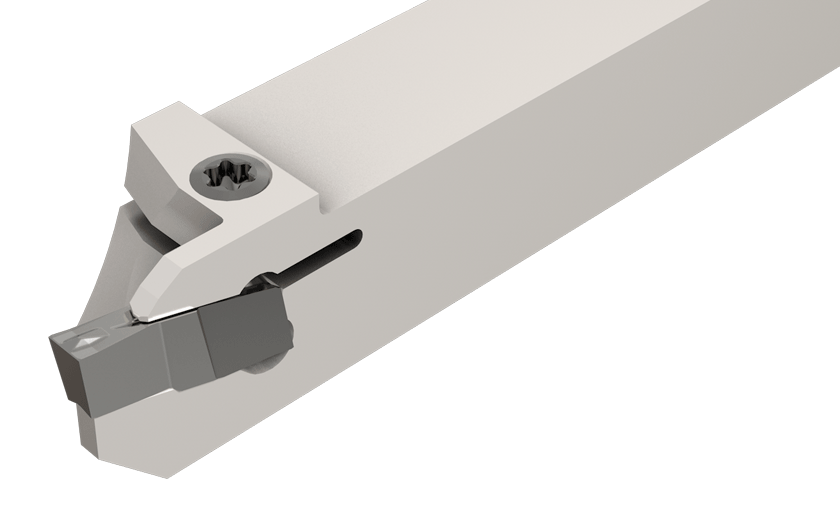

 Turn- Groove Parting Facing      Family: GHSR/L External Machining Holders for Swiss Automatic Machines       Designation: GHSR 12-2 Cutting Conditions Machine Power

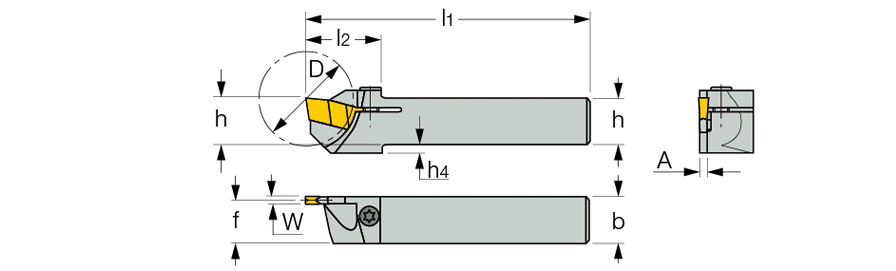

W min W max D max For W>2.1mm: grooving depth depends on part dia. h h1 b l1 f F1 l2 h4 R/L
 2.20  3.15  25.0  12.0  12.0  12.0  120.00  11.1  7.0  20.0  2.0  R

  Catalog No
2D
3D
  2800496

7000225  SR 16-236 P

7000264  T-15/3
