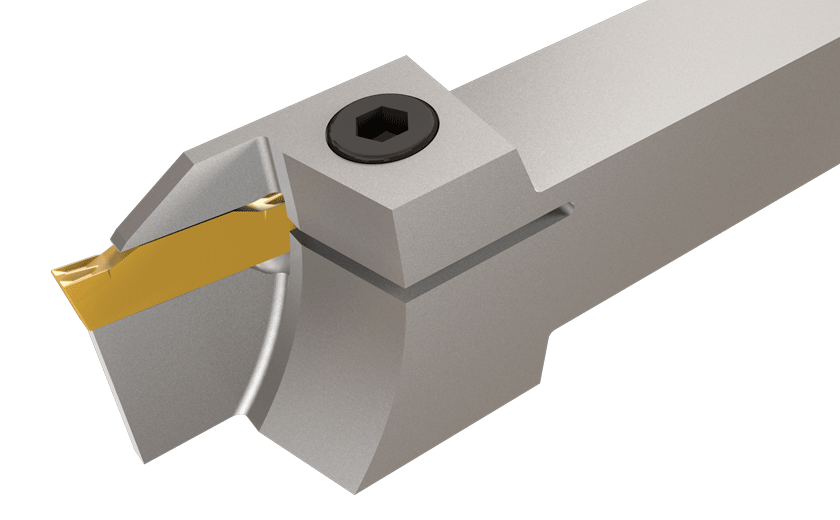

 Turn- Groove Parting Facing      Family: PHGR/L Holders for External Deep Grooving and Turning       Designation: PHGL 16-2.4 Cutting Conditions Machine Power

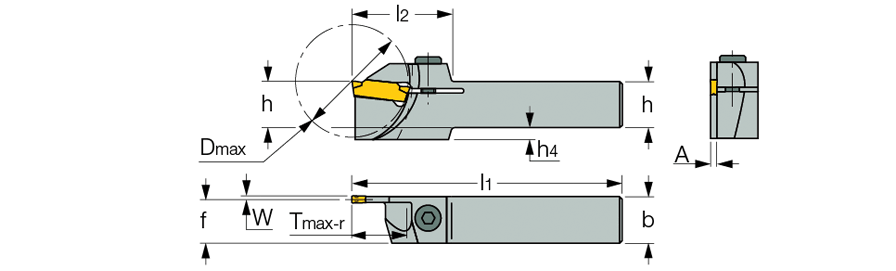

W min W max D max Limited by part diameter h h1 b l1 l2 f h4 R/L A
 2.40  3.18  34.0  16.0  16.0  16.0  110.00  33.0  15.1  5.5  L  1.90

  Catalog No
2D
3D
  2800721 Not Available

7000043  HW 4.0

7001846  SR M5X20 DIN 912
