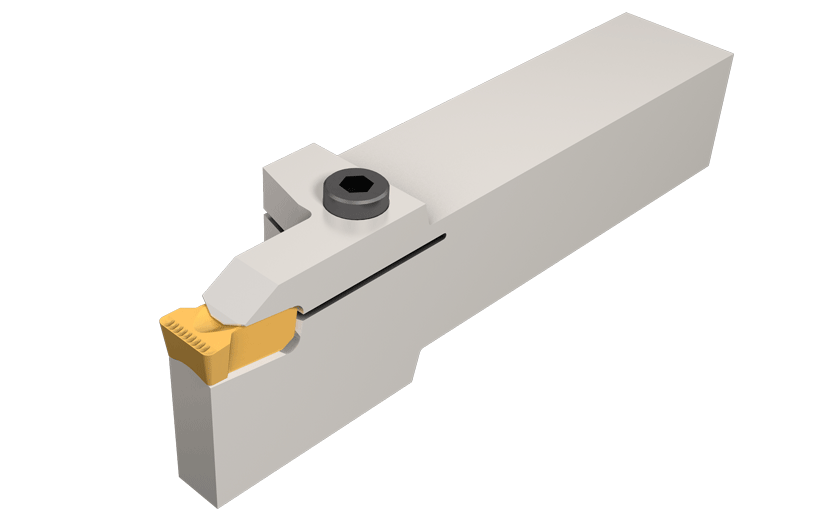

 Turn- Groove Parting Facing      Family: GHDR/L/N 12/14 Holders For Wide (12-17.4mm) Grooving Inserts       Designation: GHDL 3232-14T12 Cutting Conditions Machine Power

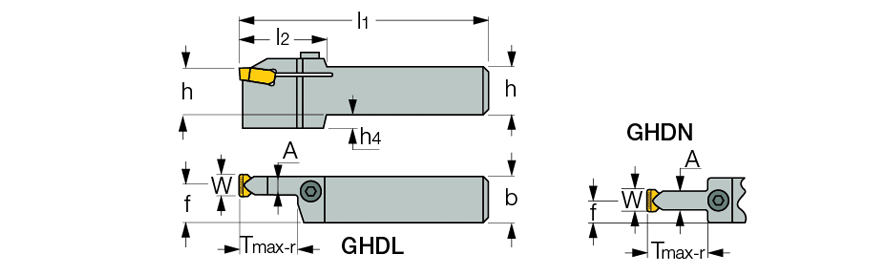

W min W max Tmax-r h h1 b l1 f A l2 h4 R/L
 13.00  17.40  12.00  32.0  32.0  32.0  170.00  26.0  12.00  41.0  -  L

  Catalog No
2D
3D
 Remark
  2800990 Not Available Use GPV 14/17 inserts.

7000049  HW 6.0

7001848  SR M8X30 DIN 912
