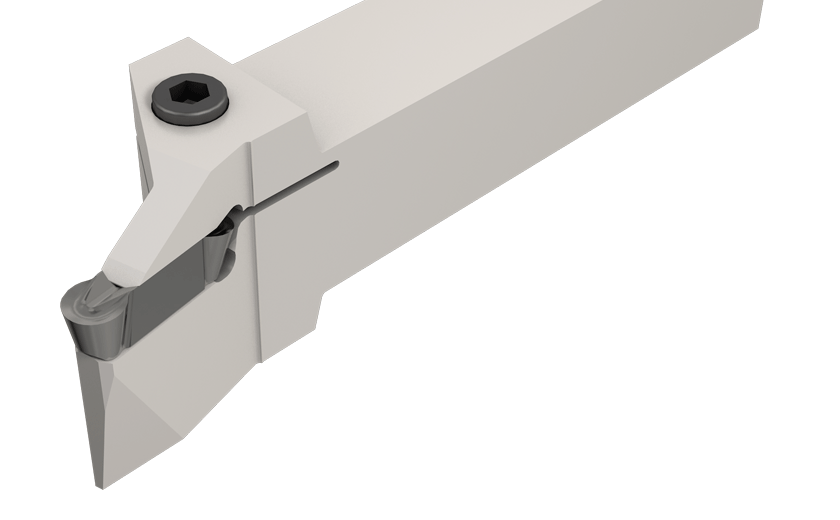

 Turn- Groove Parting Facing      Family: GHDKR/L Internal Profiling Holders for Machining Aluminum Wheels       Designation: GHDKL 25-6 Cutting Conditions Machine Power

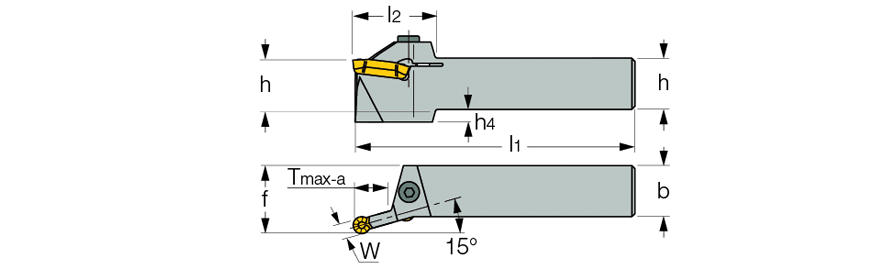

W h h1 b l1 l2 f h4 Tmax-a R/L
 6.00  25.0  25.0  25.0  150.00  40.0  32.2  6.0  19.0  L

  Catalog No
2D
3D
  2800800 Not Available

7000045  HW 5.0

7001843  SR M6X25 DIN 912
