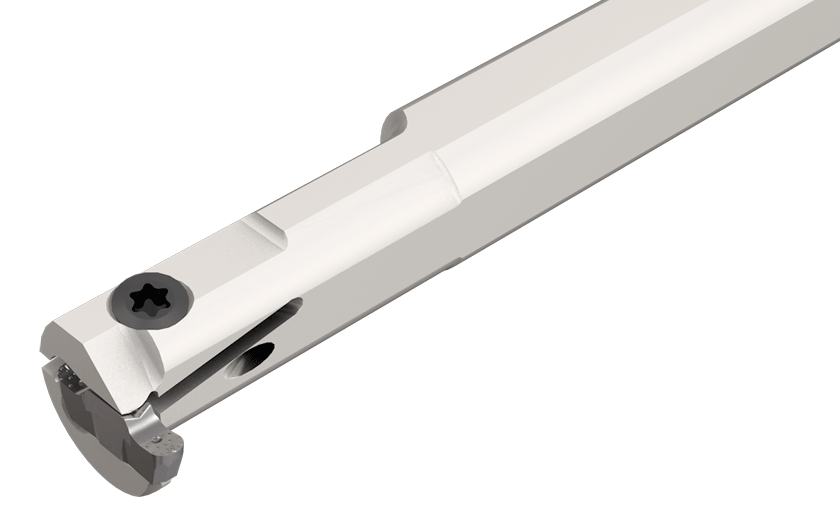

 Turn- Groove Parting Facing      Family: GEHIR/L Internal Machining Bars with Coolant Holes for GEMI and GEPI Inserts       Designation: GEHIR 16-14-2 Cutting Conditions Machine Power

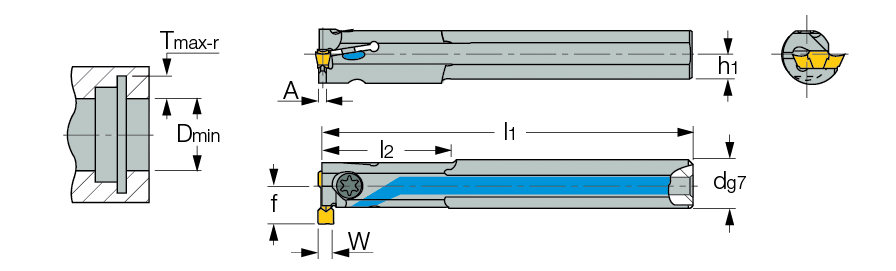

W min W max d D min Tmax-r l1 l2 f A h1 R/L
 1.90  2.40  16.00  14.00  2.60  125.00  25.0  11.0  1.60  7.5  R

  Catalog No
2D
3D
  2801171 Not Available

7000224  SR 16-236

7000265  T-15/5

7000818  PL 16
