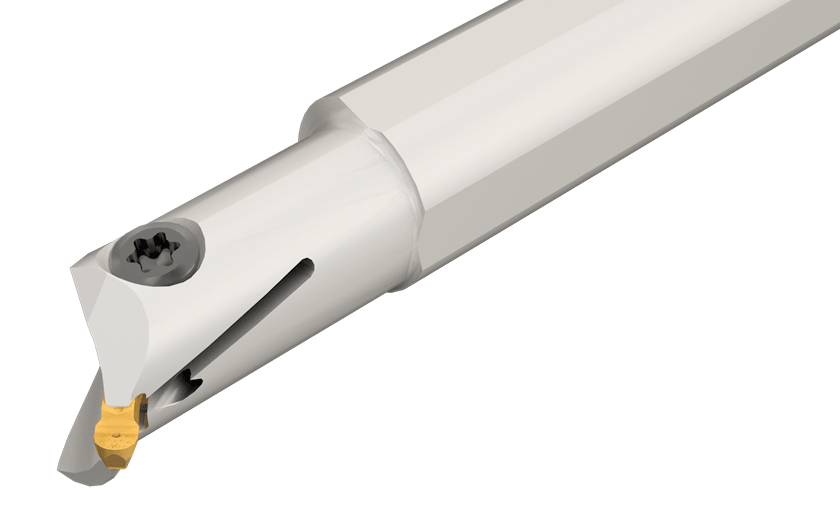

 Turn- Groove Parting Facing      Family: GEHIUR/L Undercutting and Turning Boring Bars with Coolant Holes       Designation: GEHIUL 16U Cutting Conditions Machine Power

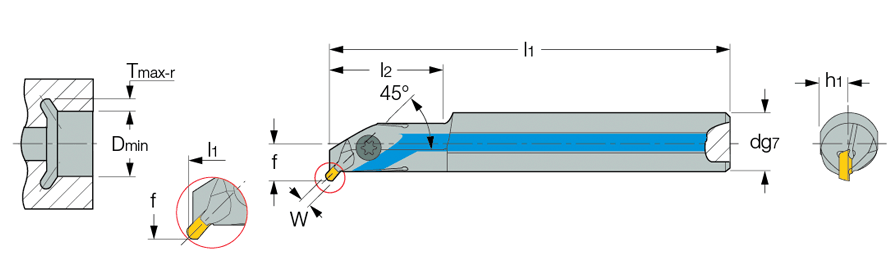

W max d D min Tmax-r l1 l2 f h1 a° Cool R/L
 3.20  16.00  16.00  2.00  125.00  32.0  9.7  7.5  45.00  Y  L

  Catalog No
2D
3D
  2801204 Not Available

7000269  T-20/5

7000818  PL 16

7003565  SR M5-04451
