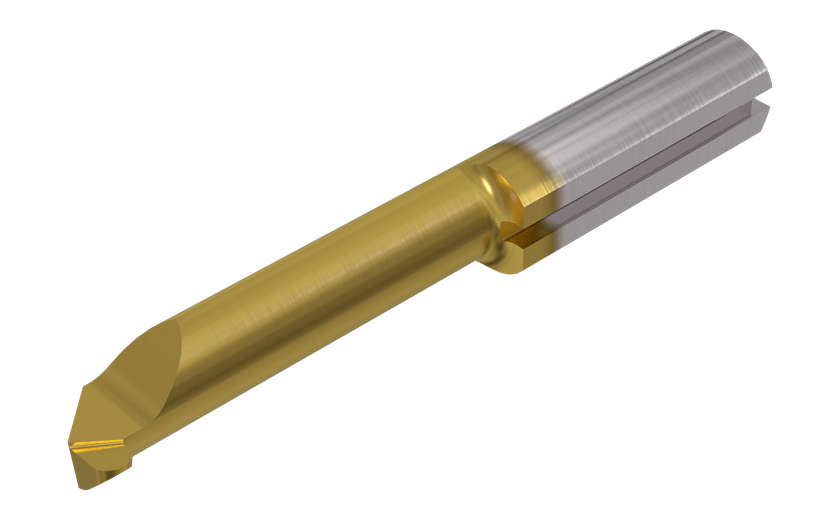

 Turn- Groove Parting Facing      Family: PICCO R/L 004-007 (Radius) Full Radius, Mini-Carbide-Bars for Internal Profiling       Designation: PICCO R 006.0.75-25 Cutting Conditions Machine Power

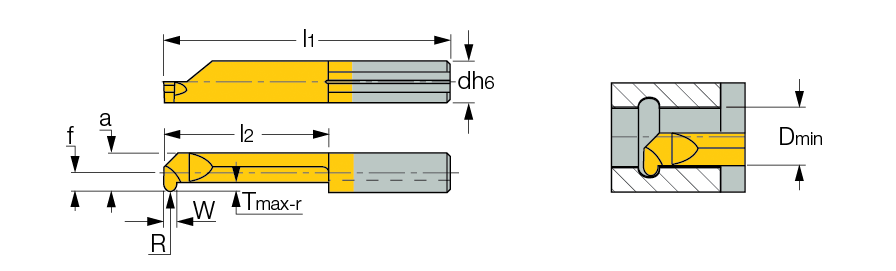

d W±0.05 f a R l1 l3 Tmax-r D min R/L
 6.00  1.50  2.3  5.30  0.75  40.00  24.0  1.80  6.00

  Catalog No Grade Alternative
2D
3D
  6403535 IC228   Not Available Not Available
