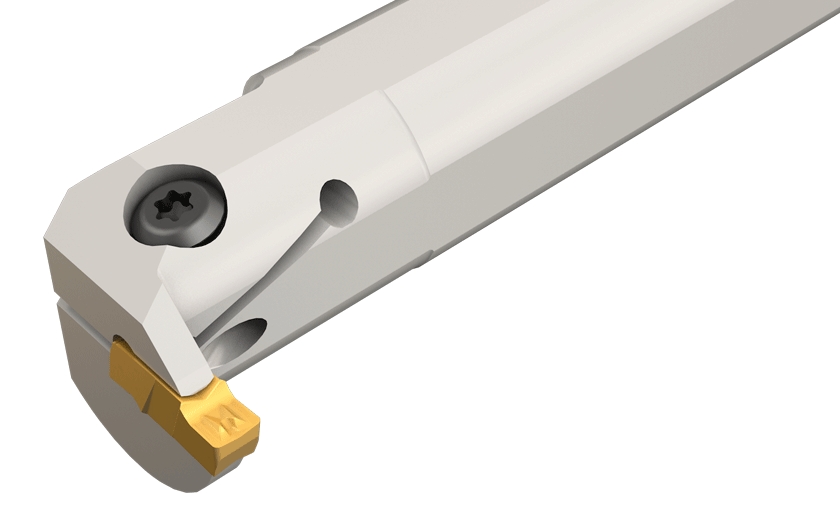

 Turn- Groove Parting Facing      Family: GHIR/L-C Grooving and Turning Bars with Internal Coolant Holes       Designation: GHIL 32C-610 Cutting Conditions Machine Power

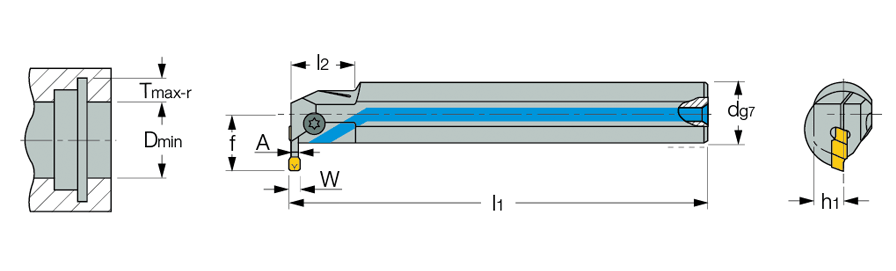

d W min W max D min Tmax-r h1 l1 l2 f A R/L
 32.00  4.80  6.40  43.00  10.00  14.5  200.00  -  26.2  4.40  L

  Catalog No
2D
3D
  2800577 Not Available

7000250  SR 76-1022

7000269  T-20/5

7000832  PL 32
