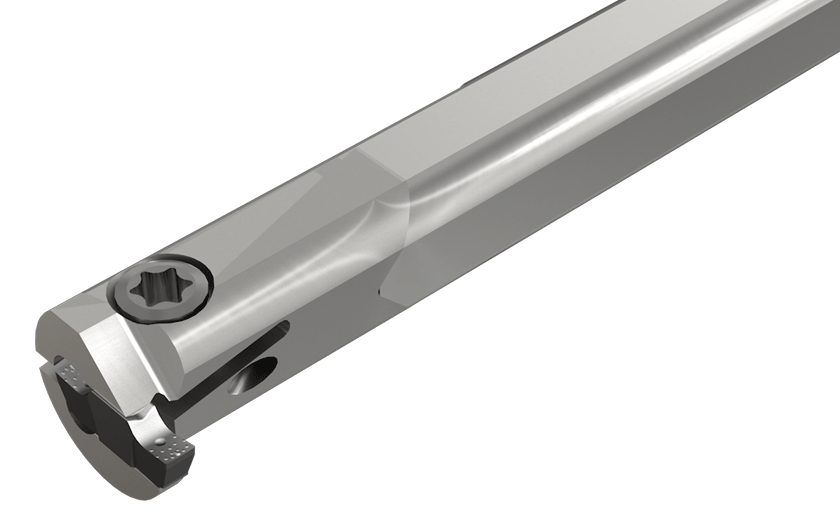

 Turn- Groove Parting Facing      Family: GEHIR/L-SC Internal Machining, Solid Carbide Bars with Coolant Holes for GEMI and GEPI inserts       Designation: GEHIR 12SC-14-3 Cutting Conditions Machine Power

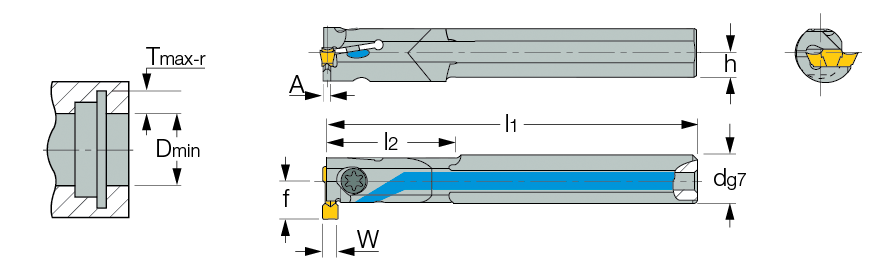

W min d W max D min Tmax-r l1 l2 f A h1 R/L
 2.40  12.00  3.20  14.00  2.60  125.00  40.0  9.1  2.00  6.0  R

  Catalog No
2D
3D
  2801293 Not Available Not Available

7000224  SR 16-236

7000265  T-15/5
