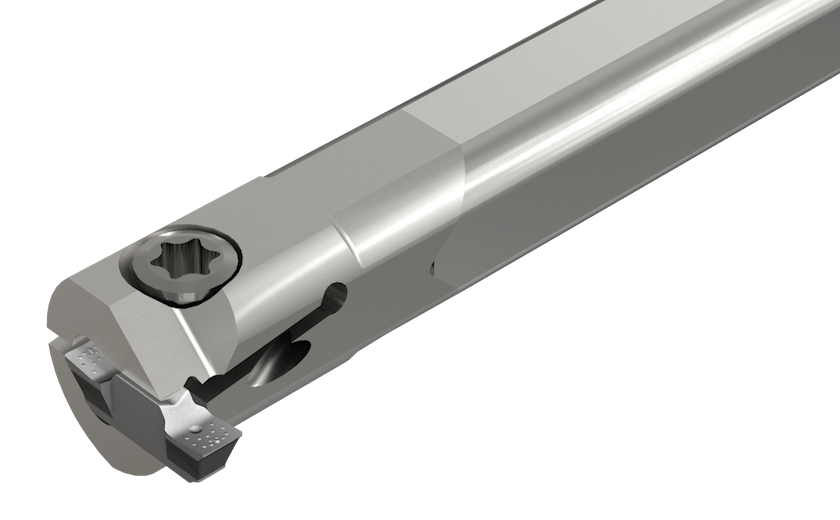

 Turn- Groove Parting Facing      Family: GEHIMR/L-SC Internal Machining Solid Carbide Bars with Coolant Holes for Insert Widths Less Than 1.9mm       Designation: GEHIMR 12SC-14 Cutting Conditions Machine Power

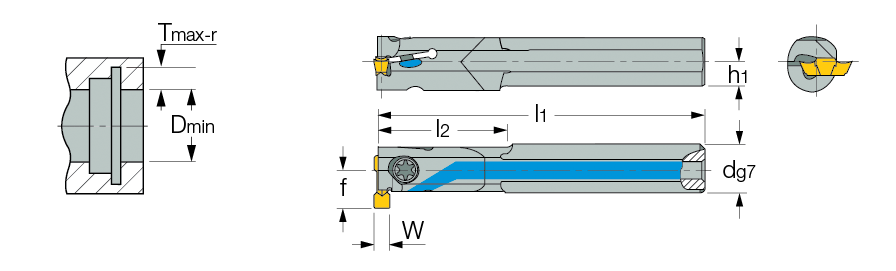

W min W max The pocket can carry inserts up to 3 mm width. d D min Tmax-r l1 l2 f h1 R/L
 0.80  1.90  12.00  14.00  2.50  125.00  40.0  9.0  6.0  R

  Catalog No
2D
3D
  2801281 Not Available Not Available

7000224  SR 16-236

7000265  T-15/5
