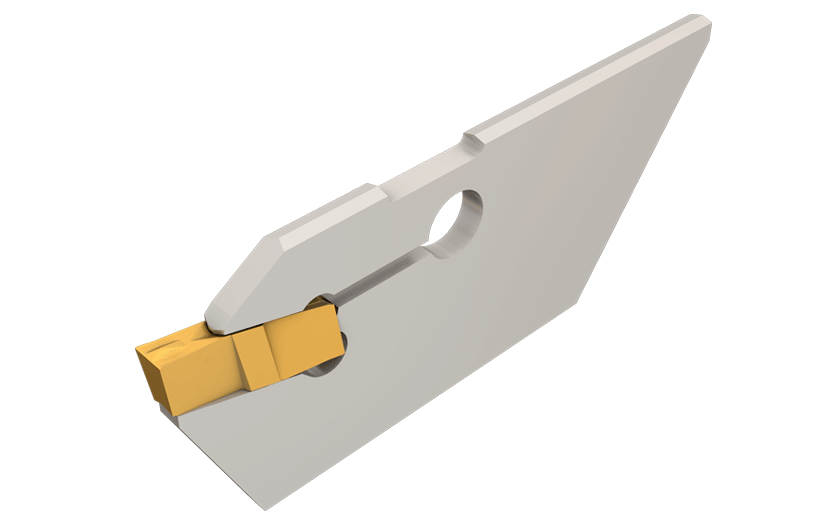

 Turn- Groove Parting Facing      Family: CGHN 26-M Internal Grooving and Turning Blades, for GHIC...-70 Bars       Designation: CGHN 26-4M Cutting Conditions Machine Power

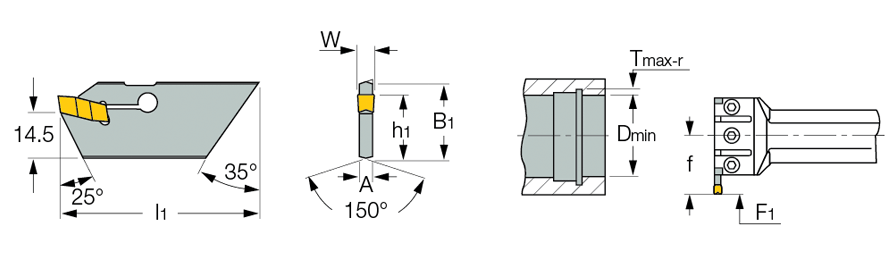

W min W max A fmin Adjustable extension Tmin Adjustable extension fmax Adjustable extension Tmax Adjustable extension h1 l1 B1
 3.60  4.50  3.20  40.0  13.5  46.5  20.0  21.4  63.00  26.0

  Catalog No
2D
3D
  2800591 Not Available
