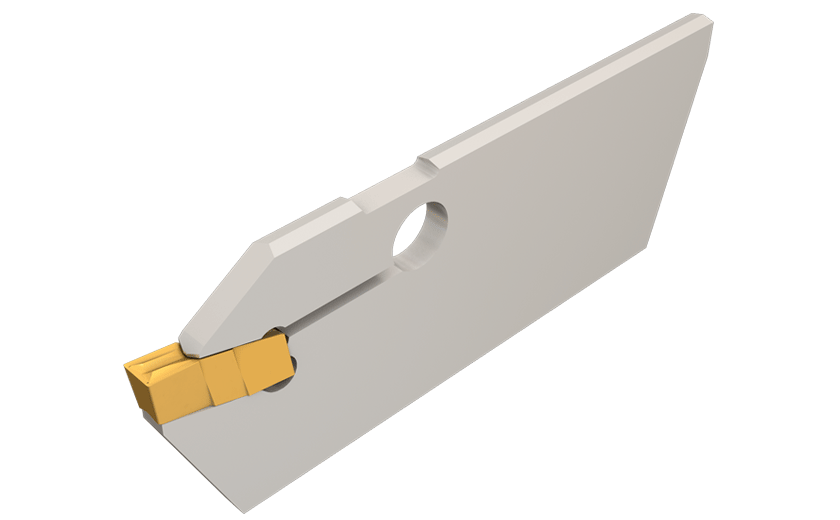

 Turn-Groove      Family: CGHN 32-M Internal Grooving and Turning Blades, for GHIC...-85 Bars       Designation: CGHN 32-6M
 CGHN 32-...M blade can be modified from external blades CGHN 32-...D

Int. Grooving   Int. Groov & Turn   Int. Profiling   Threading (Int.)
W min W max A fmin Adjustable extension fmax Adjustable extension F1min Adjustable extension F1max Adjustable extension h1 l1 B1 D min
 5.60   6.40   5.20   44.0   55.0   15.0   26.0   24.8   82.00   32.0   85.00

  Catalog No Primary View
File (2D)		 Auxiliary View
File (2D)		 Model (3D) Light Model (3D) Detail
  2800809 Not Available
3D Required		 Not Available
3D Required

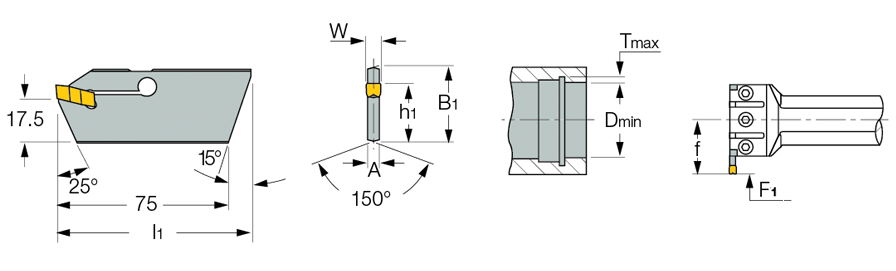

f and F1 are the blade extension range.
Grooving depth (Tmax-r) varies in conformance with blade's overhang (F1) and it depends on the bore diameter (D). For grooving capacity, click "More Info"
