Turn- Groove Parting FacingFamily: MGUHR Solid Carbide Bars Used for Internal Turning and Threading at 4 mm Minimum Bore Diameter Designation: MGUHR 06-04L10

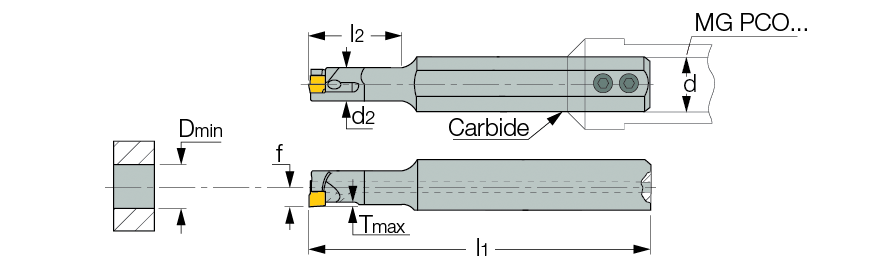

D min
Tmax-r
d
l1
l3
d2
f
4.00
0.50
6.00
62.00
10.0
3.45
2.2
Catalog No
2D
3D
Remark
2801022
Not Available
Dmin for turning 4.0mm & Tmax 0.43mm. Dmin for threading 5.0mm & Tmax 1.00mm.
