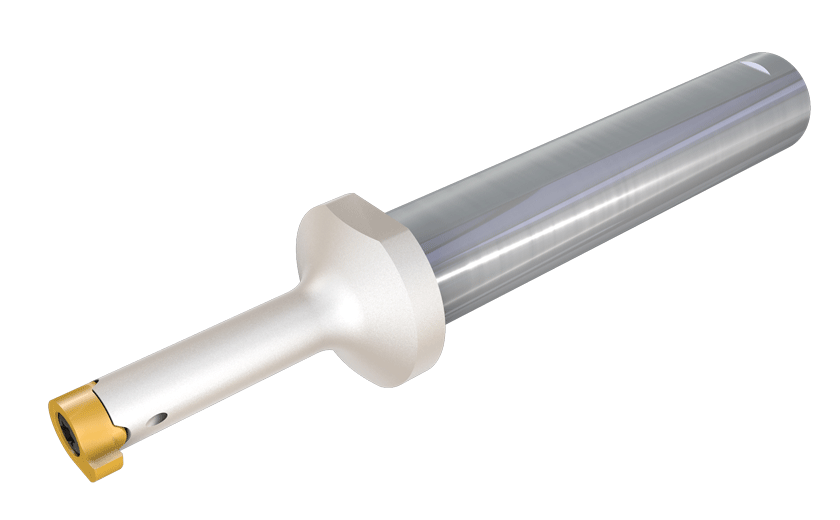

 Turn- Groove Parting Facing      Family: MG Internal Grooving Turning and Threading Bars Dmin 8mm       Designation: MG 12-11C25 Cutting Conditions Machine Power

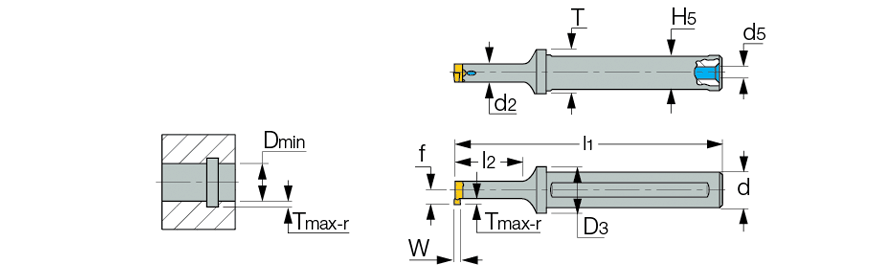

d D min Tmax-r d2 l1 l3 f Cutting edge radius on rotating tool. H5 W min W max T
 12.00  11.00  2.60  8.00  92.00  25.0  6.7  11.0  0.50  3.00  16.3

  Catalog No
2D
3D
  2800909 Not Available

7000031  HW 2.0/5HEX KEY/FLAG

7002054  SP 76-1487

7002078  DN 6X10

7002079  PN 76-1487

7002080  SR 76-1487

7002083  SP. DIN 7346 2X14MM

7002113  DB 32X43
