 Turn-Groove      Family: PICCO R/L 060 Inserts for Internal Turning and 45° Chamfering       Designation: PICCO L 060.7-20

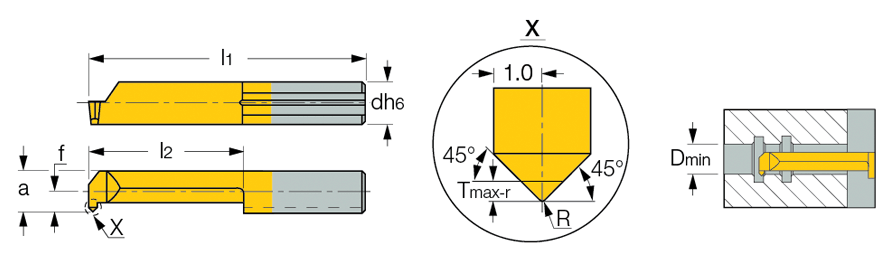

 Right-hand shown

Int. turn.& Chamfering
d R±0.04 f1 f a l2 l1 Tmax-r D min
 7.00   0.20   1.0   2.8   6.30   19.0   35.00   0.70   6.80

  Catalog No Grade Alternative Primary View
File (2D)		 Model (3D) Light Model (3D) Detail
  6402430 IC228   Not Available
3D Required		 Not Available
3D Required
