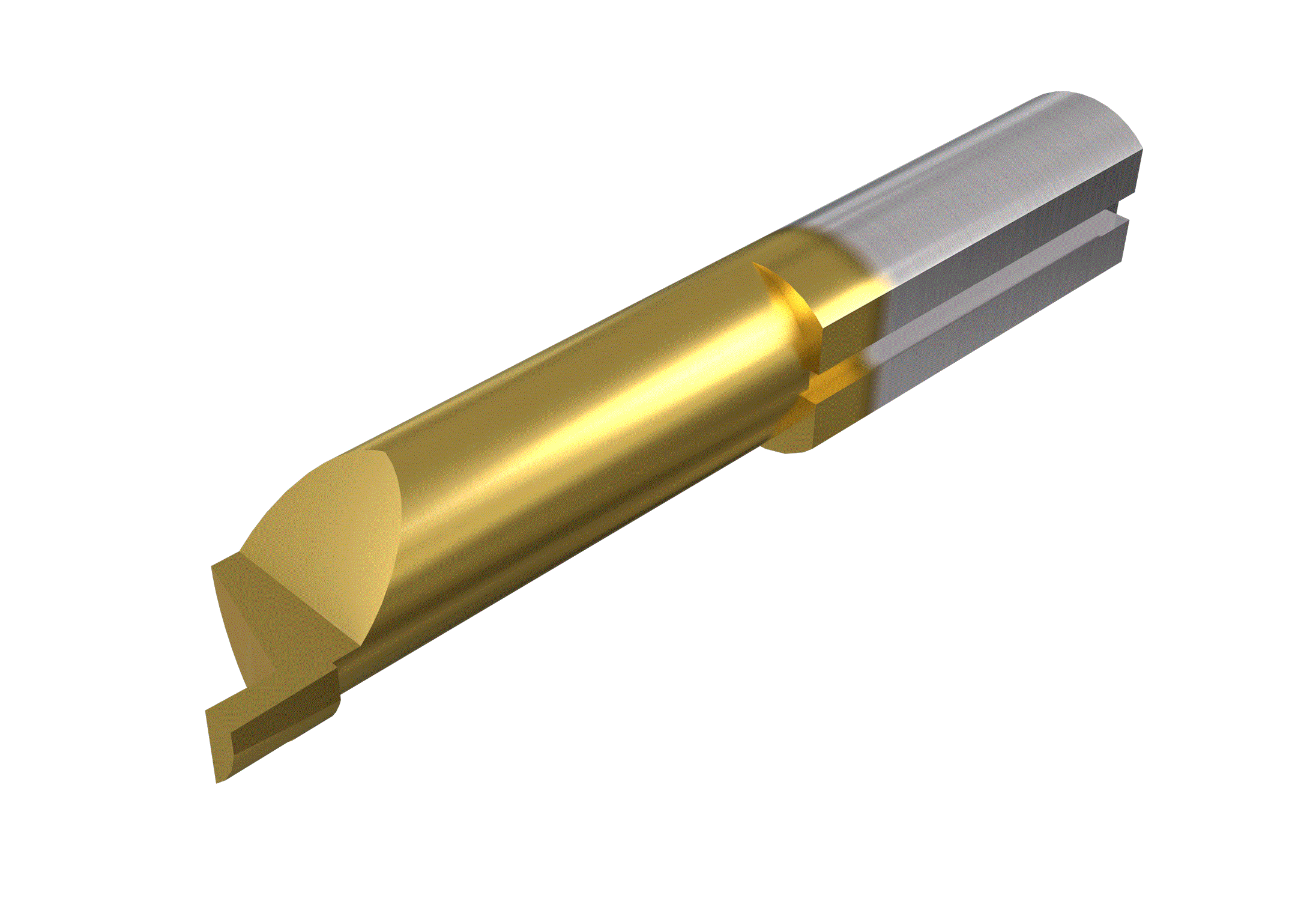

 Turn- Groove Parting Facing      Family: PICCO-010(Round face Groove) Mini-Bars for Round Profile Face Grooving       Designation: PICCO R 010.2512-20 Cutting Conditions Machine Power

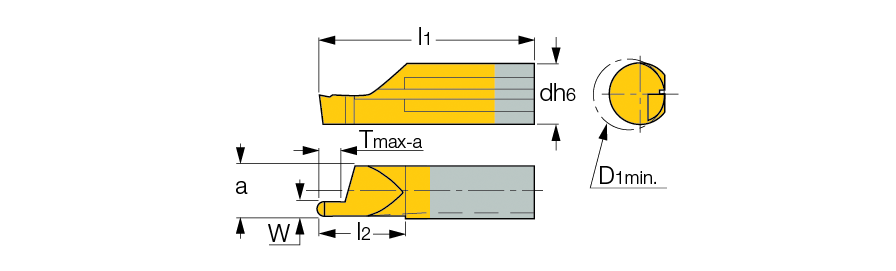

d W a l3 l1 Tmax-a D1 min
 7.00  2.50  5.90  20.0  35.00  5.0  8.0

  Catalog No Grade Alternative
2D
3D
  6403911 IC1008   Not Available Not Available
