 Turn- Groove Parting Facing      Family: GHIFR/L-A 8° / 10° Approach Angle Bars for Facing and Internal Machining       Designation: GHIFR 40C-8A-8 Cutting Conditions Machine Power

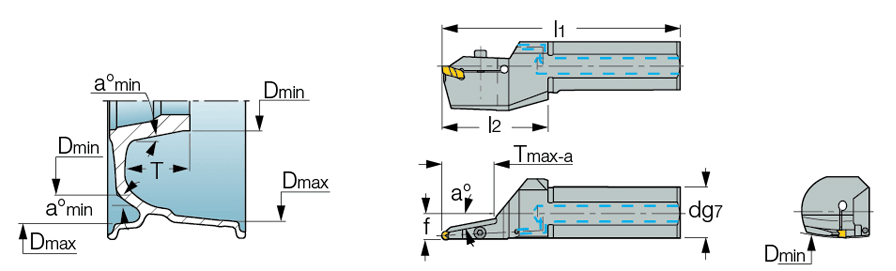

W d D min D max l1 l2 Tmax-a f a°
 8.00  40.00  300.00  360.0  320.00  100.0  70.0  19.5  8

  Catalog No
2D
3D
  2801002

7000045  HW 5.0

7000857  PL 40

7001842  SR M6X20 DIN 912

7002585  SR M6X10 DIN 913
