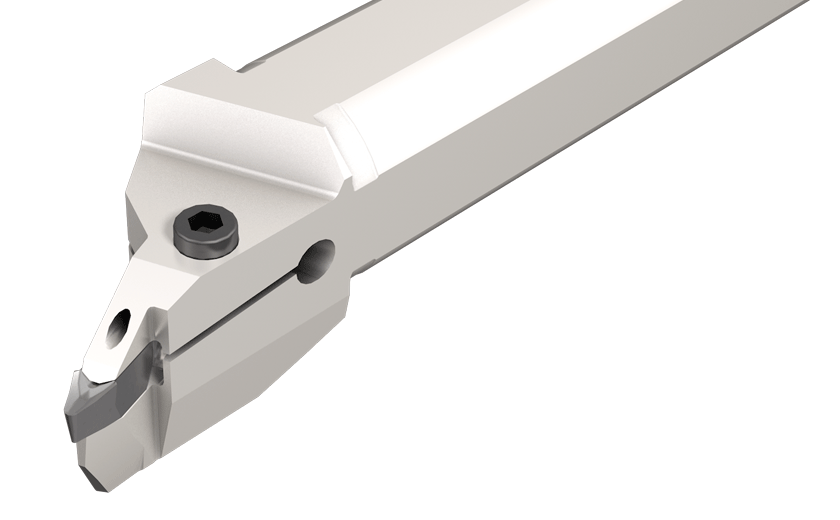

 Turn- Groove Parting Facing      Family: GHIUR/L-C-22.5A-8V Internal and Face Turning Bars for Machining Aluminum Wheels       Designation: GHIUL 40C-22.5A-8V Cutting Conditions Machine Power

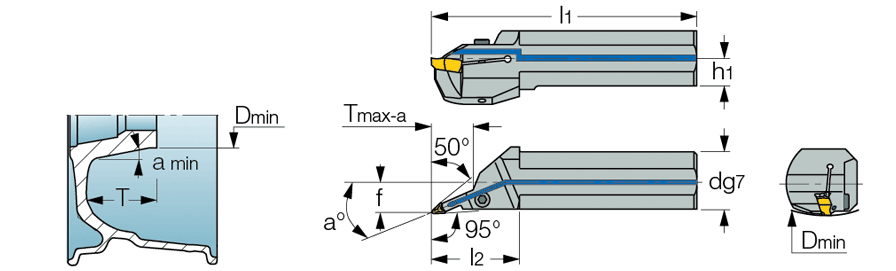

W d D min Tmax-a Dimension to minimum bore diameter& to 200mm diam. l1 l2 h1 f a° Cool R/L
 8.00  40.00  300.00  28.5  250.00  60.0  18.0  21.0  22.5  Y  L

  Catalog No
2D
3D
  2800999 Not Available

7000045  HW 5.0

7000857  PL 40

7001843  SR M6X25 DIN 912
