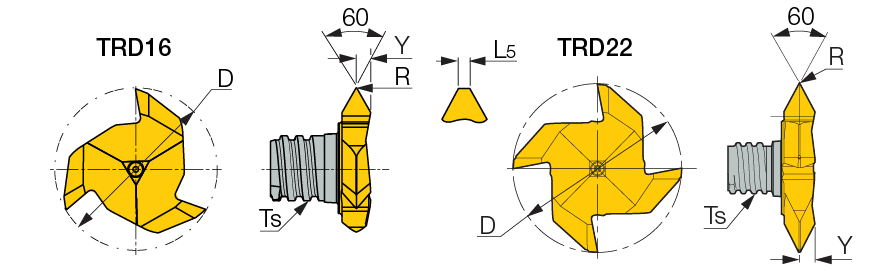

| Threading Family: MM TRD-M MULTI-MASTER interchangeable solid carbide milling heads, used for 60° partial profile thread milling. Designation: MM TRD22-M60-30P-4TO8 |
  |
|
|
|
|
| D |
TPI |
Pitch |
R |
Z |
a° |
Y |
Ts |
Th |
D min |
Standard |
| 21.70 |
8.0 |
3.00 |
0.20 |
4 |
60 |
2.80 |
T08 |
M36 |
31.00 |
ISO 68, DIN 13 |
|
Catalog No |
Grade |
Alternative |
2D |
3D |
| 6492315 |
IC528 |
|
Not Available |
Not Available |
 |
MM EGR 20-22
(Optional, should be ordered separately) |
|
|
|
|
|
|
