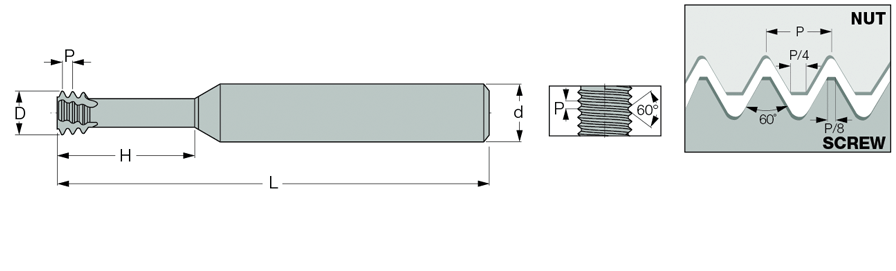

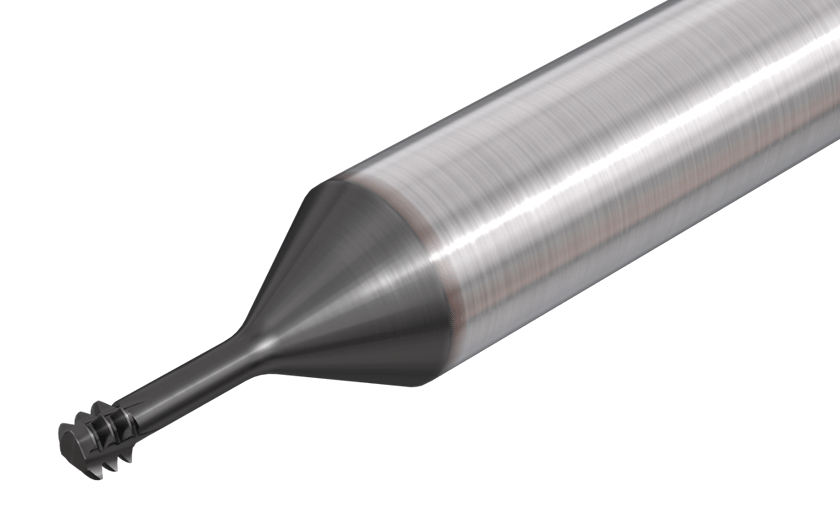

| Threading Family: MTECS-UN Small diameter short - 3 tooth, 3 flute, solid carbide threading endmills. Designation: MTECS 0605C19 28 UN |
  |
|
|
|
|
| TPI |
UNC |
UNF |
d |
Shank  |
D |
Flut |
L1 |
L |
| 28.0 |
- |
1/4 |
6.00 |
C |
5.00 |
3 |
19.0 |
58.00 |
|
Catalog No |
Grade |
Alternative |
2D |
3D |
| 5604808 |
IC908 |
|
Not Available |
Not Available |
|
|
