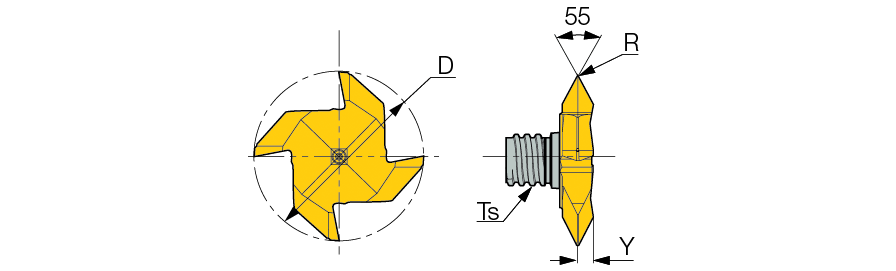

| Threading Family: MM TRD-W MULTI-MASTER interchangeable solid carbide milling heads, used for 55° partial profile thread milling. Designation: MM TRD22-W55-14P-4T08 |
  |
|
|
|
|
| D |
R |
Z |
a° |
Y |
TPI max |
Ts |
Th |
D min |
Standard |
| 21.70 |
0.20 |
4 |
55 |
2.40 |
14 |
T08 |
G3/4 |
24.20 |
DIN ISO 228, B.S. 84 |
|
Catalog No |
Grade |
Alternative |
2D |
3D |
| 6403866 |
IC528 |
|
Not Available |
Not Available |
 |
MM EGR 20-22
(Optional, should be ordered separately) |
|
|
|
|
|
|
